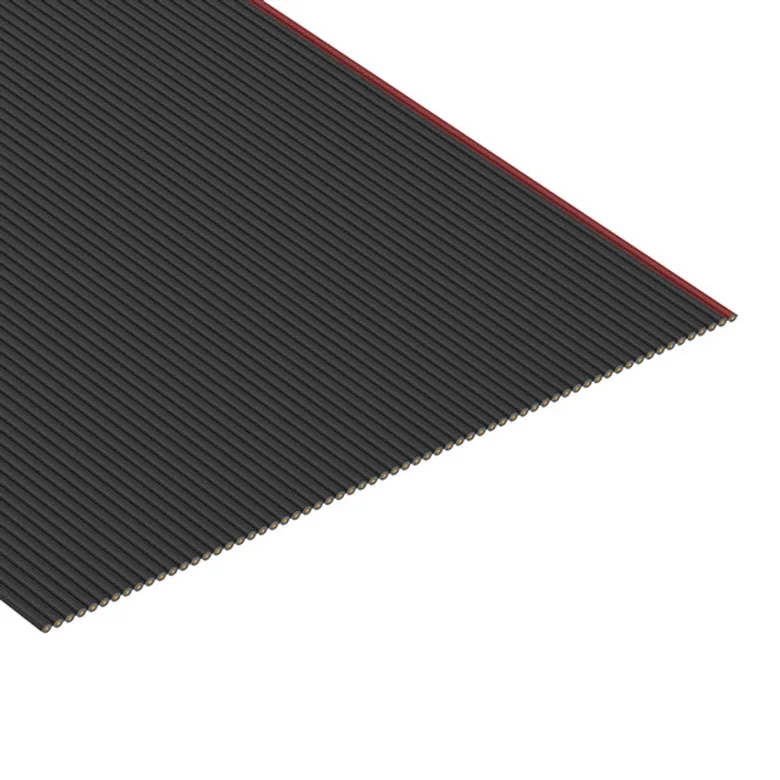

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
3M 3365A/64SF
Manufacturer
Manufacturer Product Number
3365A/64SF
Description
CBL RIBN 64COND FLAT 0.05 BLACK
Manufacturer Standard Lead Time Contact us
Detailed Description
Flat Ribbon Cable Black 64 Conductors 0.050" (1.27mm) Flat Cable
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
3M
Voltage
300 V
Operating Temperature
-20°C ~ 105°C
Number of Conductors
64
Cable Type
Flat Cable
Features
Splice Free, Zippable
Insulation Resistance
10GOhm
Ratings
UL Style 2651
Length
-
Wire Gauge
28 AWG
Shielding
Unshielded
Jacket (Insulation) Material
Poly-Vinyl Chloride (PVC)
Conductor Strand
7 Strands / 36 AWG
Pitch
0.050" (1.27mm)
Conductor Material
Copper, Tinned
Ribbon Thickness
0.035" (0.89mm)
Ribbon Width
3.200" (81.28mm)
First Conductor Mark
Red
Jacket Color
Black
Documents & Media
Resource Type
Link
Datasheets
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
3365A/64SF
7673024
3365A/64SF-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 11.178.000 ₫ 11.178.000 ₫
11.178.000 ₫
All prices are shown in the selected currency
Spool · Digikey
Quantity Unit Price Ext Price
9
11.178.000 ₫
100.602.000 ₫
MOQ 9 · Order multiple 9
