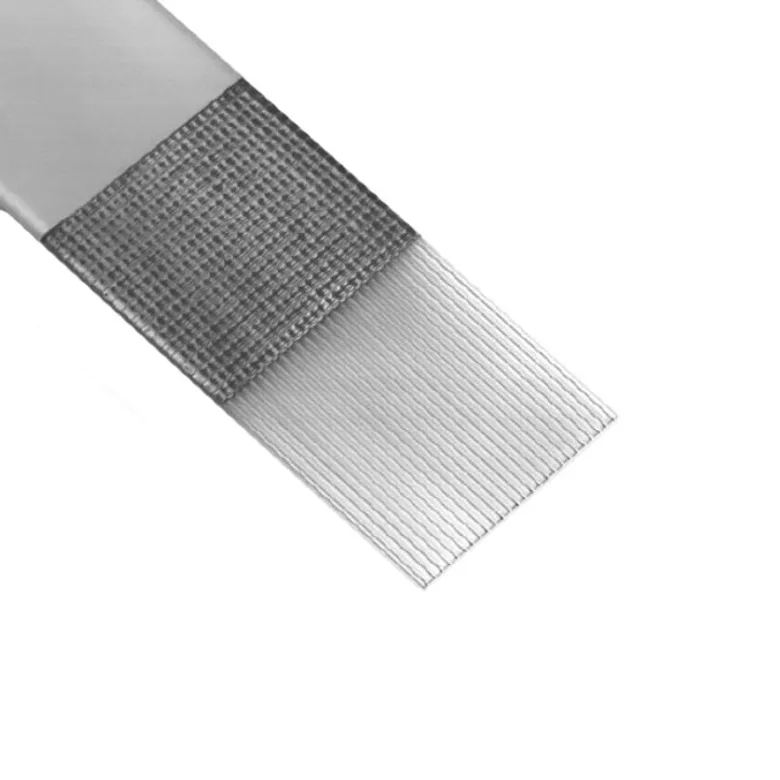

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
3M 90204/34 100SF
Manufacturer
Manufacturer Product Number
90204/34 100SF
Description
CBL RIBN 34COND 0.05 GRAY 100'
Manufacturer Standard Lead Time Contact us
Detailed Description
CBL RIBN 34COND 0.05 GRAY 100'
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
3M
Voltage
150 V
Operating Temperature
-20°C ~ 105°C
Number of Conductors
34
Cable Type
Flat Cable, Flat Jacket
Features
Splice Free
Insulation Resistance
10GOhm
Ratings
UL E42769
Length
100.0' (30.48m)
Wire Gauge
28 AWG
Shielding
Shielded
Jacket (Insulation) Material
Thermoplastic Elastomer (TPE)
Conductor Strand
7 Strands / 38 AWG
Pitch
0.050" (1.27mm)
Conductor Material
Copper, Tinned
Ribbon Thickness
0.070" (1.78mm)
Ribbon Width
1.740" (44.20mm)
First Conductor Mark
Blue
Jacket Color
Gray
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
90204/34 100SF
1099302
90204/34100SF-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 341.000 ₫ 341.000 ₫
341.000 ₫
All prices are shown in the selected currency
Spool · Digikey
Quantity Unit Price Ext Price
300
341.000 ₫
102.300.000 ₫
MOQ 300 · Order multiple 300
