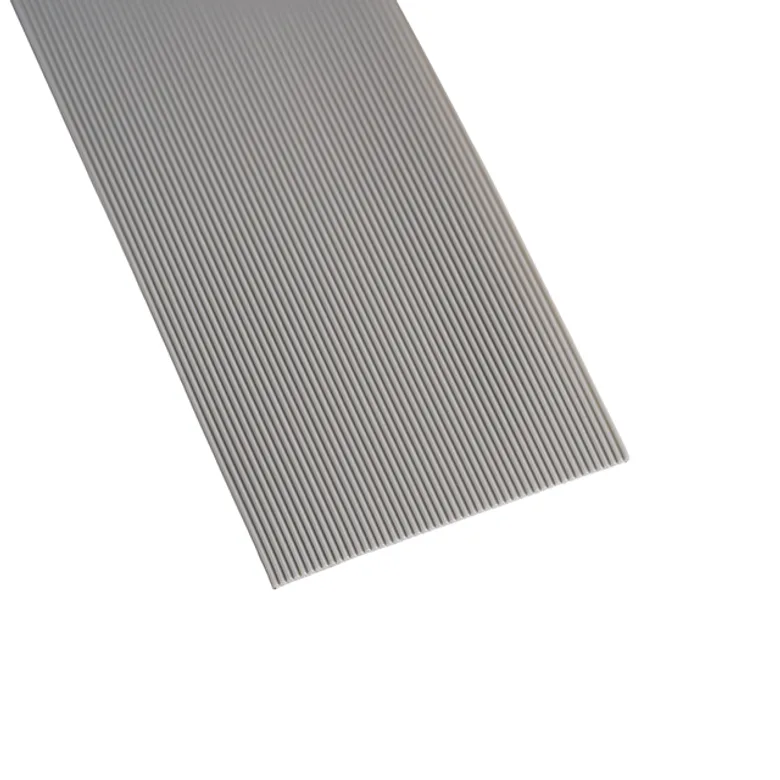

3M HF447/14 100'SF
Manufacturer
Manufacturer Product Number
HF447/14 100'SF
Description
CBL RIBN 14COND 0.025 GRAY 100'
Manufacturer Standard Lead Time Contact us
Detailed Description
CBL RIBN 14COND 0.025 GRAY 100'
Product Attributes
Type
Description
Manufacturer
3M
Voltage
150 V
Operating Temperature
-40°C ~ 90°C
Number of Conductors
14
Cable Type
Flat Cable
Features
Splice Free
Insulation Resistance
10GOhm
Ratings
-
Length
100.0' (30.48m)
Wire Gauge
30 AWG
Shielding
Unshielded
Jacket (Insulation) Material
Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO)
Conductor Strand
Solid
Pitch
0.025" (0.64mm)
Conductor Material
Copper, Tinned
Ribbon Thickness
0.025" (0.64mm)
Ribbon Width
0.350" (8.89mm)
First Conductor Mark
Blue
Jacket Color
Gray
Documents & Media
Resource Type
Link
Drawings
Additional Resources
Attribute
Description
Part Number Alias
HF447/14 100'SF
7344495
HF447/14100'SF-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 27.000 ₫ 27.000 ₫
27.000 ₫
All prices are shown in the selected currency
Spool · Digikey
Quantity Unit Price Ext Price
1,000
27.000 ₫
27.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Alternate Length
HF447/14 300'SF
CBL RIBN 14COND 0.025 GRAY 300'
30.000 ₫ 3M
