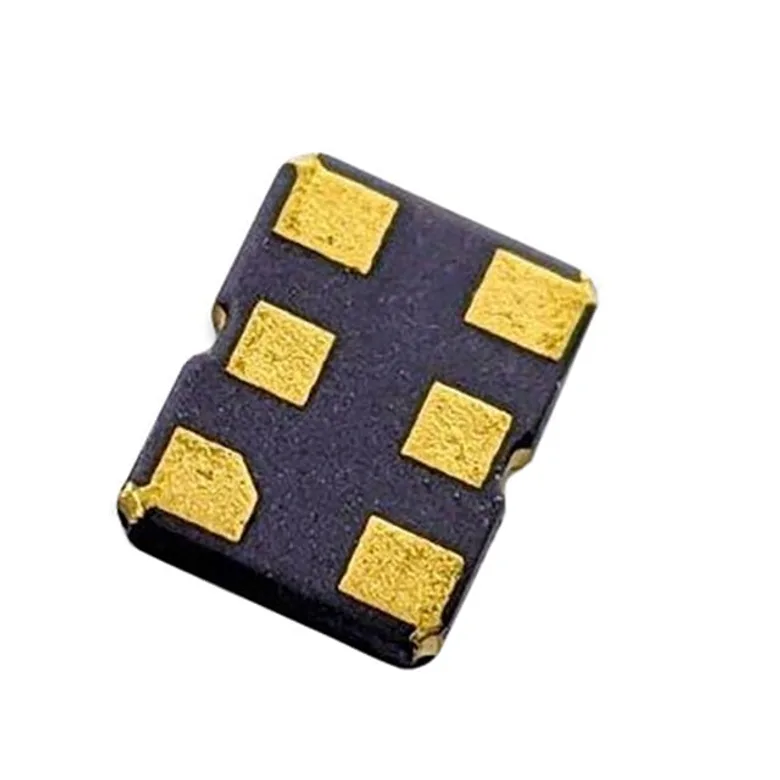

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Abracon LLC AK2PAF1-100.0000T
Manufacturer
Manufacturer Product Number
AK2PAF1-100.0000T
Description
XTAL OSC XO 100MHZ 3.3V LVPECL
Manufacturer Standard Lead Time Contact us
Detailed Description
100 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Abracon LLC
Current - Supply (Max)
50mA
Base Resonator
Crystal
Operating Temperature
-40°C ~ 85°C
Frequency Stability
±30ppm
Voltage - Supply
3.3V
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type
Surface Mount
Ratings
-
Output
LVPECL
Supplier Device Package
6-SMD (2.5x2)
Current - Supply (Disable) (Max)
10µA
Height - Seated (Max)
0.043" (1.10mm)
Package / Case
6-SMD, No Lead
Type
XO (Standard)
Function
Enable/Disable
Absolute Pull Range (APR)
-
Spread Spectrum Bandwidth
-
Frequency
100 MHz
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
AK2PAF1-100.0000T
10493539
535-AK2PAF1-100.0000TCT-ND
535-AK2PAF1-100.0000TDKR-ND
535-AK2PAF1-100.0000TTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,830
Packaging Quantity Unit Price Ext Price
1 131.000 ₫ 131.000 ₫
131.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
131.000 ₫
131.000 ₫
10
114.000 ₫
1.140.000 ₫
25
108.000 ₫
2.700.000 ₫
50
103.000 ₫
5.150.000 ₫
100
99.000 ₫
9.900.000 ₫
250
94.000 ₫
23.500.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
131.000 ₫
131.000 ₫
10
114.000 ₫
1.140.000 ₫
25
108.000 ₫
2.700.000 ₫
50
103.000 ₫
5.150.000 ₫
100
99.000 ₫
9.900.000 ₫
250
94.000 ₫
23.500.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
86.000 ₫
86.000.000 ₫
2,000
83.000 ₫
166.000.000 ₫
3,000
81.000 ₫
243.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Substitutes
626P10004I3T
XTAL OSC XO 100.0000MHZ LVPECL
80.000 ₫ CTS-Frequency Controls
626P10005I3T
XTAL OSC XO 100.0000MHZ LVPECL
81.000 ₫ CTS-Frequency Controls
