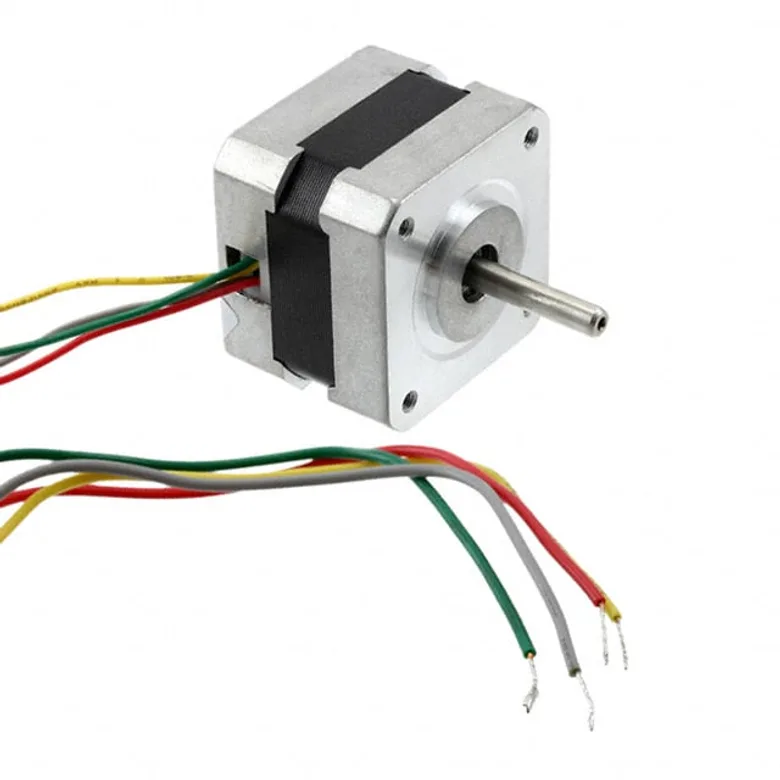

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Adafruit Industries LLC 324
Manufacturer
Manufacturer Product Number
324
Description
STEPPER MOTOR HYBRID BIPOLAR 12V
Manufacturer Standard Lead Time Contact us
Detailed Description
STEPPER MOTOR HYBRID BIPOLAR 12V
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Adafruit Industries LLC
Accuracy
-
Steps per Revolution
200.0
Operating Temperature
0°C ~ 50°C
Termination Style
Wire Leads
Step Angle
1.8°
Torque - Holding (oz-in / mNm)
28 / 197
Size / Dimension
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Features
Flatted Shaft
Approval Agency
UL
Coil Type
Bipolar
Voltage - Rated
12VDC
Length - Shaft and Bearing
0.945" (24.00mm)
Type
Hybrid
Diameter - Shaft
0.197" (5.00mm)
Mounting Hole Spacing
1.220" (30.99mm)
NEMA Frame Size
17
Rotor Inertia
38gcm²
Current Rating (Amps)
350 mA
Coil Resistance
35 Ohms
Weight
0.441 lb (200.03 g)
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Manuals
Related Documents
Interactive Media
Additional Resources
Attribute
Description
Part Number Alias
324
5022791
1528-1062-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 186
Packaging Quantity Unit Price Ext Price
1 364.000 ₫ 364.000 ₫
364.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
364.000 ₫
364.000 ₫
MOQ 1 · Order multiple 1
