Image shown is representative only. Exact specifications should be obtained from the product datasheet.

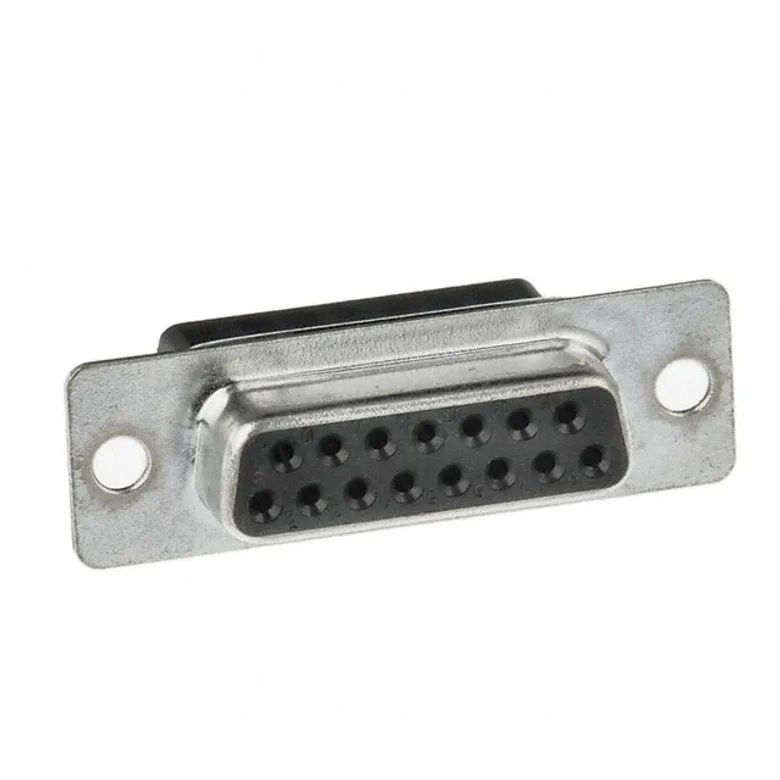

Adam Tech DA15-SR
Manufacturer
Manufacturer Product Number
DA15-SR
Description
CONN D-SUB RCPT 15POS CRIMP
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN D-SUB RCPT 15POS CRIMP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Adam Tech
Operating Temperature
-55°C ~ 105°C
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Color
Black
Features
-
Contact Type
-
Flange Feature
Housing/Shell (Unthreaded)
Termination
Crimp
Voltage Rating
250VAC
Current Rating (Amps)
1A
Mounting Type
Free Hanging (In-Line)
Ingress Protection
-
Wire Gauge
-
Connector Style
D-Sub
Contact Finish Thickness
Flash
Number of Positions
15
Number of Rows
2
Material Flammability Rating
UL94 V-0
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Shell Size, Connector Layout
2 (DA, A)
Contact Form
Stamped
Shell Material, Finish
Steel, Tin Plated
Contact Material
Copper Alloy
Backset Spacing
-
Documents & Media
Resource Type
Link
Datasheets
Related Documents
Interactive Media
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
DA15-SR
9832844
2057-DA15-SR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 652
Packaging Quantity Unit Price Ext Price
1 33.000 ₫ 33.000 ₫
33.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
33.000 ₫
33.000 ₫
10
28.000 ₫
280.000 ₫
25
26.000 ₫
650.000 ₫
50
25.000 ₫
1.250.000 ₫
100
24.000 ₫
2.400.000 ₫
250
22.000 ₫
5.500.000 ₫
500
21.000 ₫
10.500.000 ₫
1,000
20.000 ₫
20.000.000 ₫
2,500
19.000 ₫
47.500.000 ₫
MOQ 1 · Order multiple 1
