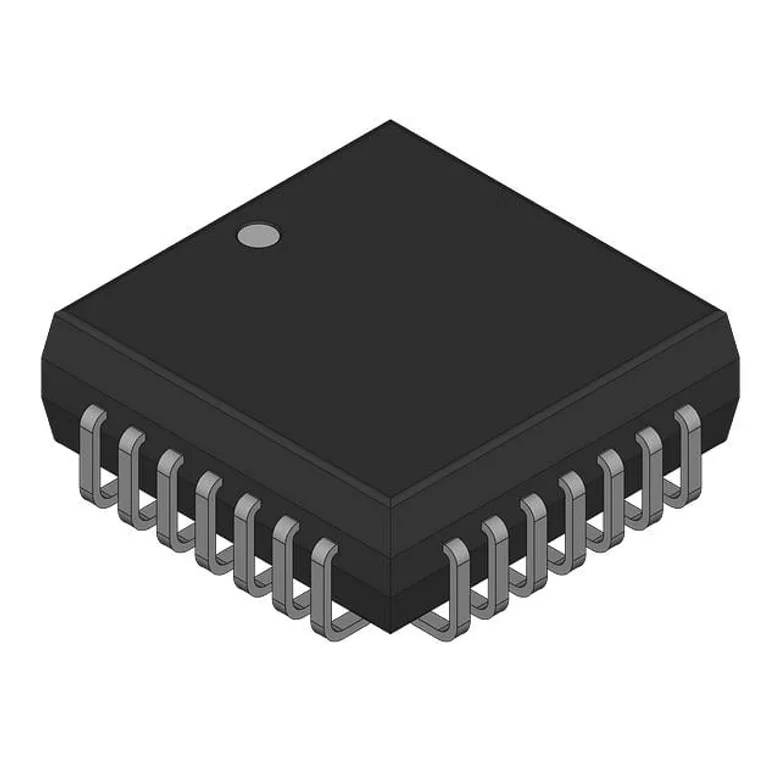

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Advanced Micro Devices PAL20RS4CNL
Manufacturer
Manufacturer Product Number
PAL20RS4CNL
Description
OT PLD, PAL-TYPE, TTL, PQCC28
Manufacturer Standard Lead Time 10 Days
Detailed Description
- Programmable Logic Device (PLD) IC 4 Macrocells 28-PLCC (11.51x11.51)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Advanced Micro Devices
Speed
35 ns
DigiKey Programmable
Not Verified
Mounting Type
Surface Mount
Voltage - Input
4.75V ~ 5.25V
Supplier Device Package
28-PLCC (11.51x11.51)
Programmable Type
PAL
Number of Macrocells
4
Package / Case
28-LCC (J-Lead)
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
PAL20RS4CNL
12136266
2156-PAL20RS4CNL-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 101
Packaging Quantity Unit Price Ext Price
1 831.000Â â‚« 831.000Â â‚«
831.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
9
831.000Â â‚«
7.479.000Â â‚«
MOQ 9 · Order multiple 9
