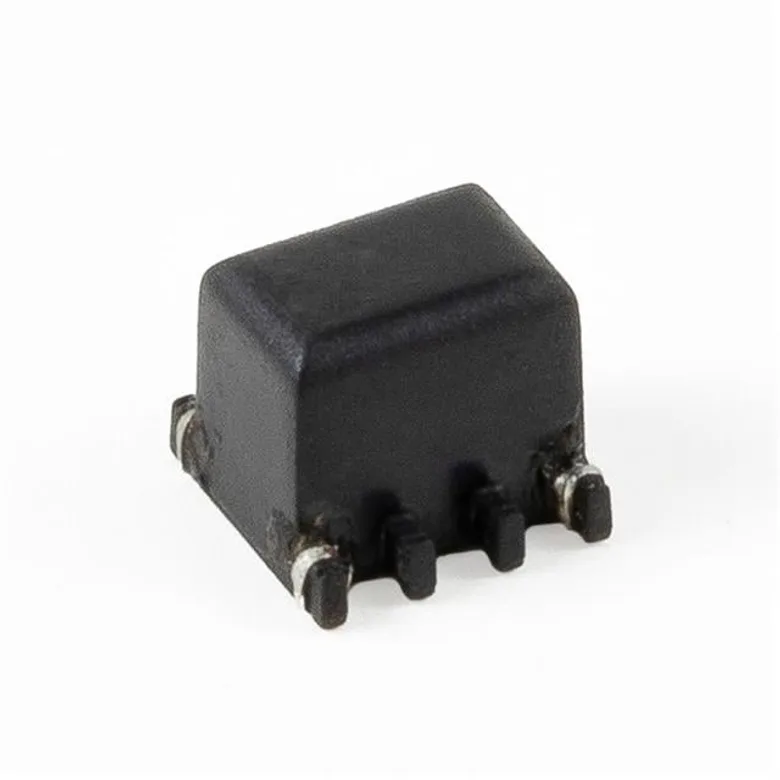

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Allied Components International AGDT-3738
Manufacturer
Manufacturer Product Number
AGDT-3738
Description
SMT Gate Drive Transformer
Manufacturer Standard Lead Time Contact us
Detailed Description
1.2mH Gate Drive Pulse Transformer 1:1 Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Allied Components International
Operating Temperature
-40°C ~ 85°C
Transformer Type
Gate Drive
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.330" L x 0.230" W (8.38mm x 5.84mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.295" (7.49mm)
Inductance
1.2mH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
AGDT-3738
16638943
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
