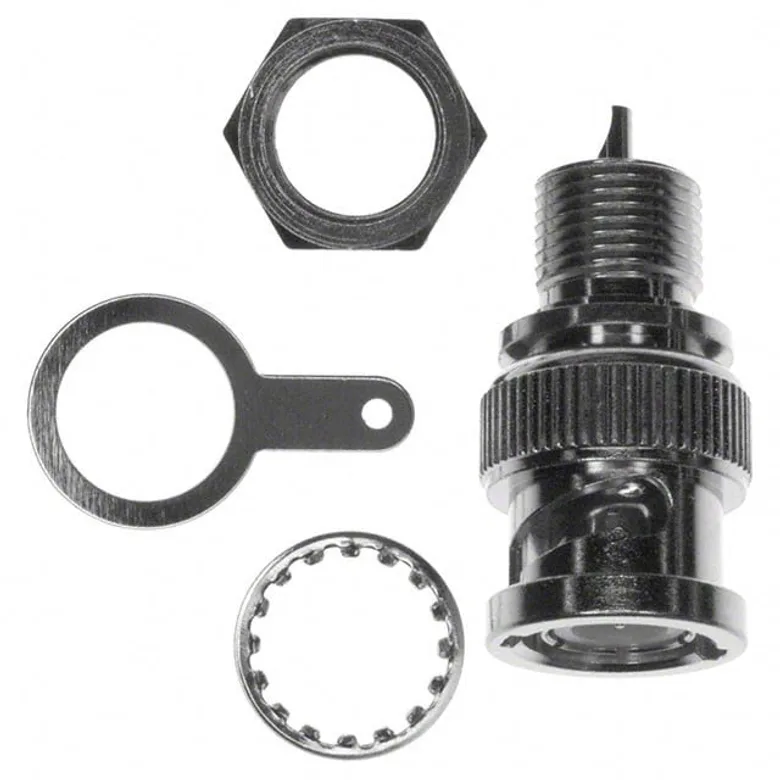

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Amphenol RF 112420
Manufacturer
Manufacturer Product Number
112420
Description
CONN BNC RCPT STR 50 OHM SOLDER
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN BNC RCPT STR 50 OHM SOLDER
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Amphenol RF
Voltage Rating
500 V
Operating Temperature
-
Connector Type
Plug, Male Pin
Contact Termination
Solder Cup
Insertion Loss
0.2dB
Features
-
Fastening Type
Bayonet Lock
Impedance
50 Ohms
Includes
4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
Mounting Type
Panel Mount
Ingress Protection
-
Connector Style
BNC
Dielectric Material
Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Cable Group
-
Shield Termination
Solder Tag
Center Contact Material
Brass
Body Finish
Nickel
Center Contact Plating
Gold
Mounting Feature
Bulkhead - Rear Side Nut
Frequency - Max
4 GHz
Number of Ports
1
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Training Modules
Interactive Media
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
112420
1989856
ACX1407-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,473
Packaging Quantity Unit Price Ext Price
1 161.000Â â‚« 161.000Â â‚«
161.000Â â‚«
All prices are shown in the selected currency
Bag · Digikey
Quantity Unit Price Ext Price
1
161.000Â â‚«
161.000Â â‚«
10
137.000Â â‚«
1.370.000Â â‚«
25
128.000Â â‚«
3.200.000Â â‚«
50
122.000Â â‚«
6.100.000Â â‚«
100
116.000Â â‚«
11.600.000Â â‚«
300
108.000Â â‚«
32.400.000Â â‚«
500
104.000Â â‚«
52.000.000Â â‚«
1,000
99.000Â â‚«
99.000.000Â â‚«
2,500
93.000Â â‚«
232.500.000Â â‚«
MOQ 1 · Order multiple 1
