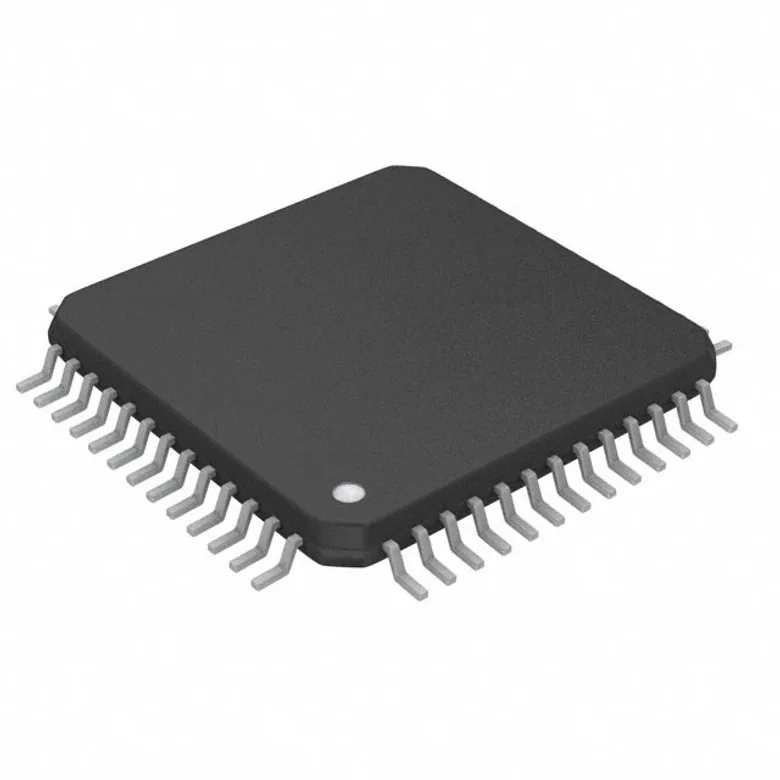

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. AD1838AASZ-REEL
Manufacturer
Manufacturer Product Number
AD1838AASZ-REEL
Description
IC CODEC 2ADC/6DAC 24 BIT 52MQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC CODEC 2ADC/6DAC 24 BIT 52MQFP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Product Status
Obsolete
Data Interface
Serial
Operating Temperature
-40°C ~ 85°C
Voltage - Supply, Analog
4.5V ~ 5.5V
Voltage - Supply, Digital
4.5V ~ 5.5V
Resolution (Bits)
24 b
Mounting Type
Surface Mount
Dynamic Range, ADCs / DACs (db) Typ
105 / 108
Number of ADCs / DACs
2 / 6
S/N Ratio, ADCs / DACs (db) Typ
105 / 108
Supplier Device Package
52-MQFP (10x10)
Sigma Delta
Yes
Package / Case
52-QFP
Type
Stereo Audio
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Product Change Notices
Featured Products
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
AD1838AASZ-REEL
994708
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
AD1938YSTZRL
IC CODEC 24BIT 4ADC/8DAC 48LQFP
