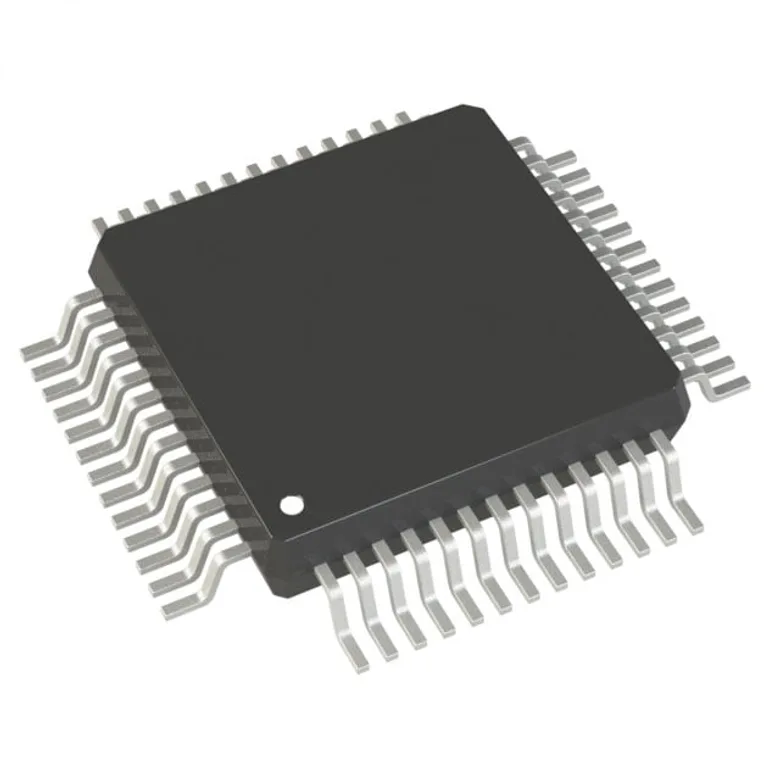

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUC824BSZ
Manufacturer
Manufacturer Product Number
ADUC824BSZ
Description
IC MCU 8BIT 8KB FLASH 52MQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC MCU 8BIT 8KB FLASH 52MQFP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Number of I/O
34
Operating Temperature
-40°C ~ 85°C (TA)
DigiKey Programmable
Not Verified
Qualification
-
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
640 x 8
Core Processor
8052
Data Converters
A/D 3x16b, 4x24b; D/A 1x12b
Core Size
8-Bit
Mounting Type
Surface Mount
Supplier Device Package
52-MQFP (10x10)
Speed
12.58MHz
Program Memory Size
8KB (8K x 8)
RAM Size
256 x 8
Package / Case
52-QFP
Grade
-
Voltage - Supply (Vcc/Vdd)
2.7V ~ 5.25V
Connectivity
EBI/EMI, I2C, SPI, UART/USART
Peripherals
POR, PSM, Temp Sensor, WDT
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
ADUC824BSZ
996506
505-ADUC824BSZ-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 11
Packaging Quantity Unit Price Ext Price
1 810.000 ₫ 810.000 ₫
810.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
810.000 ₫
810.000 ₫
10
676.000 ₫
6.760.000 ₫
34
624.000 ₫
21.216.000 ₫
102
588.000 ₫
59.976.000 ₫
272
564.000 ₫
153.408.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
ADUC824BSZ-REEL
IC MCU 8BIT 8KB FLASH 52MQFP
