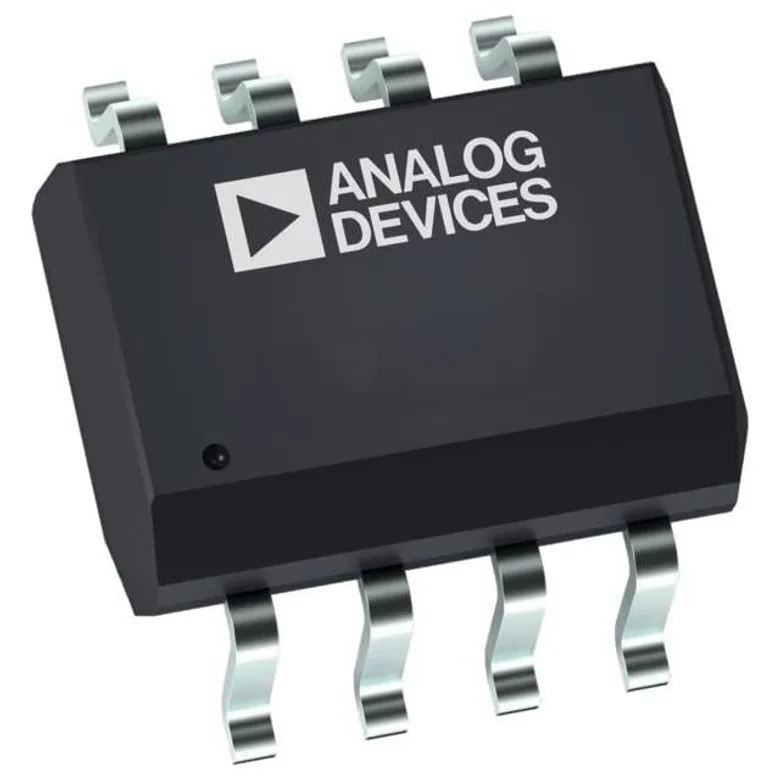

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM110N1BRZ-RL7
Manufacturer
Manufacturer Product Number
ADUM110N1BRZ-RL7
Description
DGTL ISOLTR 3KV 1CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3KV 1CH GP 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
1.7V ~ 5.5V
Data Rate
150Mbps
Technology
Magnetic Coupling
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/0
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
75kV/µs
Propagation Delay tpLH / tpHL (Max)
13ns, 13ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
3ns
Type
General Purpose
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
Related Documents
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ADUM110N1BRZ-RL7
5775469
505-ADUM110N1BRZ-RL7TR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,000
Packaging Quantity Unit Price Ext Price
1 32.000 ₫ 32.000 ₫
32.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
32.000 ₫
32.000.000 ₫
2,000
31.000 ₫
62.000.000 ₫
3,000
31.000 ₫
93.000.000 ₫
5,000
31.000 ₫
155.000.000 ₫
7,000
30.000 ₫
210.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Substitutes
ADUM110N0BRZ-RL7
DGTL ISOLTR 3KV 1CH GP 8-SOIC
58.000 ₫ Analog Devices Inc.
