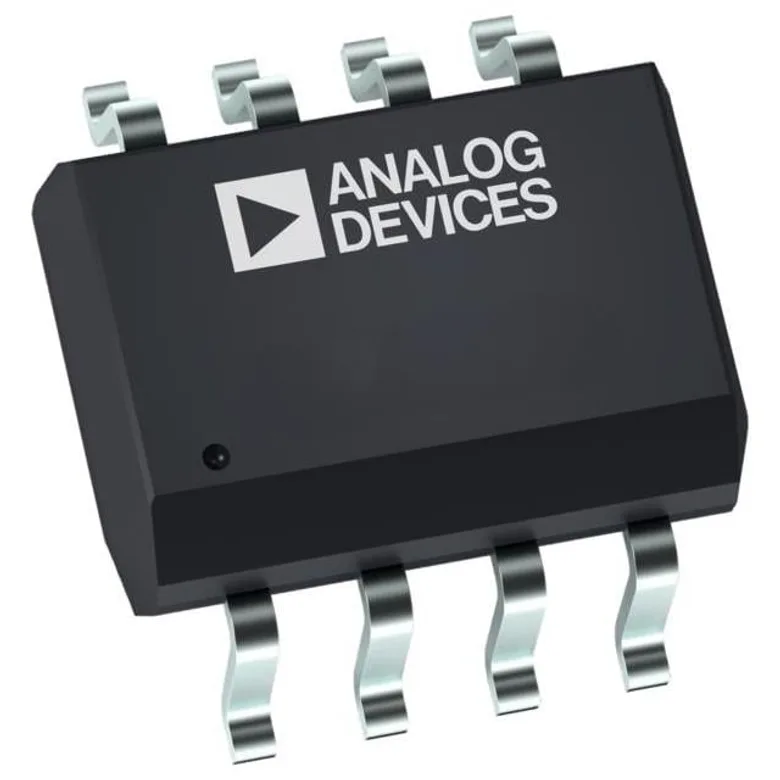

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM1200WSRZ55
Manufacturer
Manufacturer Product Number
ADUM1200WSRZ55
Description
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Product Status
Obsolete
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
3V ~ 5.5V
Data Rate
25Mbps
Technology
Magnetic Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
2/0
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
45ns, 45ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
3ns
Type
General Purpose
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ADUM1200WSRZ55
9565482
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
ADUM1200WSRZ55-RL7
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Substitutes
SI8423AB-D-IS
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
63.000Â â‚« Skyworks Solutions Inc.
ADUM120N1WBRZ-RL7
DGTL ISOLTR 3KV 2CH GP 8-SOIC
43.000Â â‚« Analog Devices Inc.
