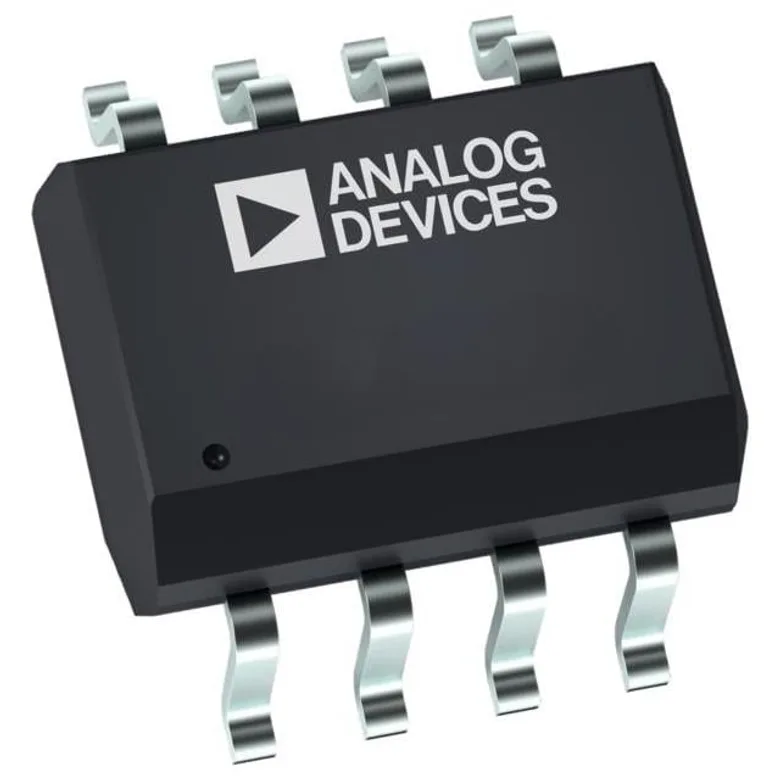

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM1201WSRZ55
Manufacturer
Manufacturer Product Number
ADUM1201WSRZ55
Description
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Product Status
Obsolete
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
2.7V ~ 5.5V
Data Rate
1Mbps
Technology
Magnetic Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/1
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
10ns, 10ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
150ns, 150ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
40ns
Type
General Purpose
Number of Channels
2
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ADUM1201WSRZ55
9565484
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
ADUM1201WSRZ55-RL7
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Substitutes
SI8621BB-B-IS
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
65.000Â â‚« Skyworks Solutions Inc.
ADUM121N1WBRZ
DGTL ISOLTR 3KV 2CH GP 8-SOIC
80.000Â â‚« Analog Devices Inc.
