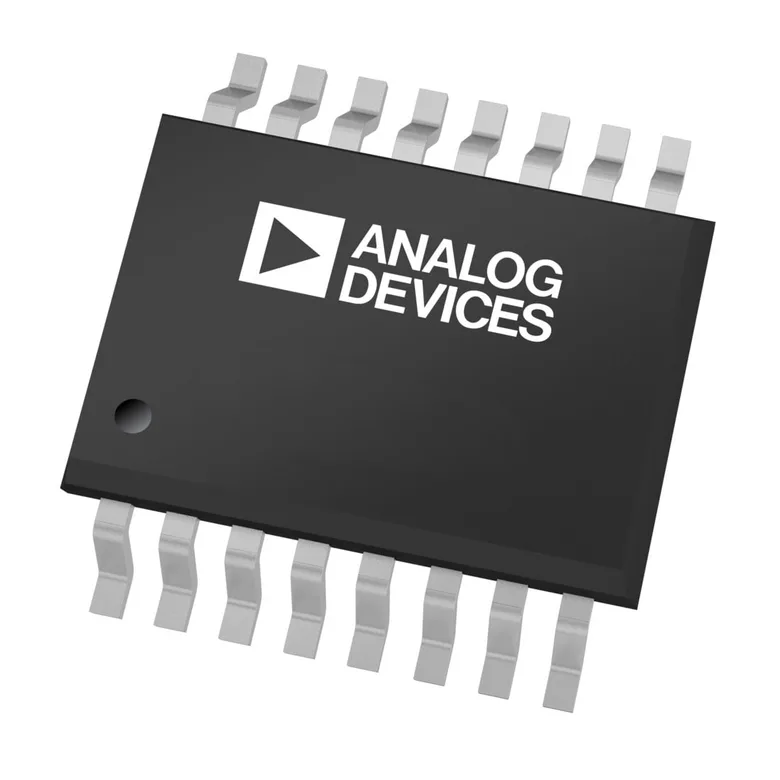

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM1402CRW
Manufacturer
Manufacturer Product Number
ADUM1402CRW
Description
DGTL ISOLTR 2.5KV 4CH GP 16-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
General Purpose Digital Isolator 2500Vrms 4 Channel 90Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Product Status
Obsolete
Operating Temperature
-40°C ~ 105°C
Voltage - Supply
2.7V ~ 5.5V
Data Rate
90Mbps
Technology
Magnetic Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
2/2
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
32ns, 32ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
2ns
Type
General Purpose
Number of Channels
4
Documents & Media
Resource Type
Link
Datasheets
Related Documents
Videos
Product Change Notices
Featured Products
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ADUM1402CRW
612557
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
ISO7842DWR
DGTL ISOLTR 5.7KV 4CH GP 16-SOIC
208.000Â â‚« Texas Instruments
ACML-7420-500E
DGTL ISOLTR 5.6KV 4CH GP 16-SOIC
258.000Â â‚« Broadcom Limited
ISO7842DW
DGTL ISOLTR 5.7KV 4CH GP 16-SOIC
282.000Â â‚« Texas Instruments
ADUM3402CRWZ
DGTL ISOLTR 2.5KV 4CH GP 16-SOIC
212.000Â â‚« Analog Devices Inc.
