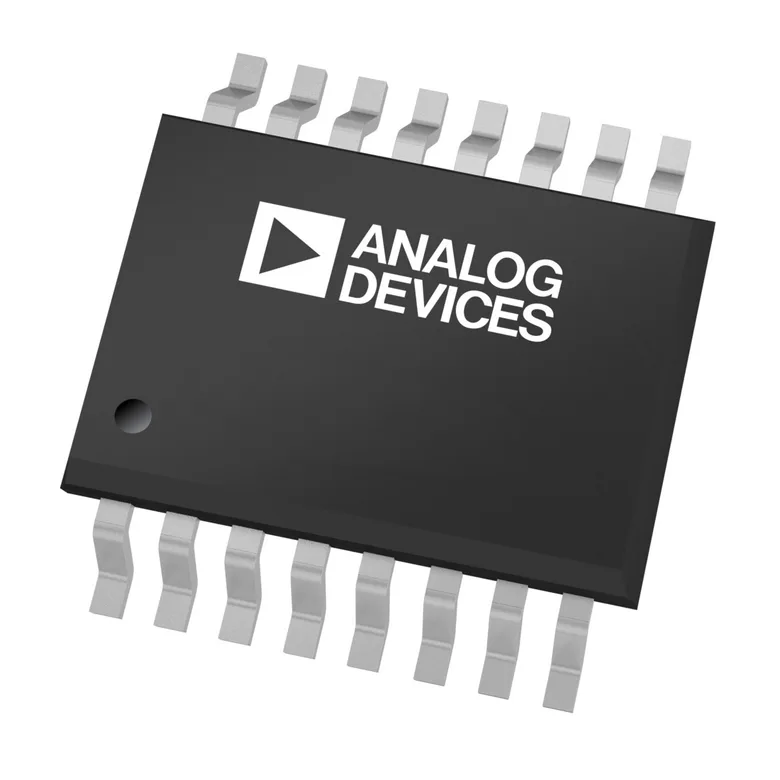

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM142D0BRWZ-RL
Manufacturer
Manufacturer Product Number
ADUM142D0BRWZ-RL
Description
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Operating Temperature
-40°C ~ 125°C
Qualification
-
Voltage - Supply
1.7V ~ 5.5V
Data Rate
150Mbps
Technology
Magnetic Coupling
Voltage - Isolation
3750Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
2/2
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
75kV/µs
Propagation Delay tpLH / tpHL (Max)
13ns, 13ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
3ns
Type
General Purpose
Grade
-
Number of Channels
4
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
ADUM142D0BRWZ-RL
5559597
505-ADUM142D0BRWZ-RLTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 69.000 ₫ 69.000 ₫
69.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
69.000 ₫
69.000.000 ₫
2,000
67.000 ₫
134.000.000 ₫
3,000
66.000 ₫
198.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Substitutes
ACML-7420-000E
DGTL ISOLTR 5.6KV 4CH GP 16-SOIC
257.000 ₫ Broadcom Limited
ADUM142E1BRWZ-RL
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
69.000 ₫ Analog Devices Inc.
ACML-7420-500E
DGTL ISOLTR 5.6KV 4CH GP 16-SOIC
258.000 ₫ Broadcom Limited
ADUM142E0BRWZ-RL
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
69.000 ₫ Analog Devices Inc.
ADUM142D1BRWZ-RL
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
67.000 ₫ Analog Devices Inc.
