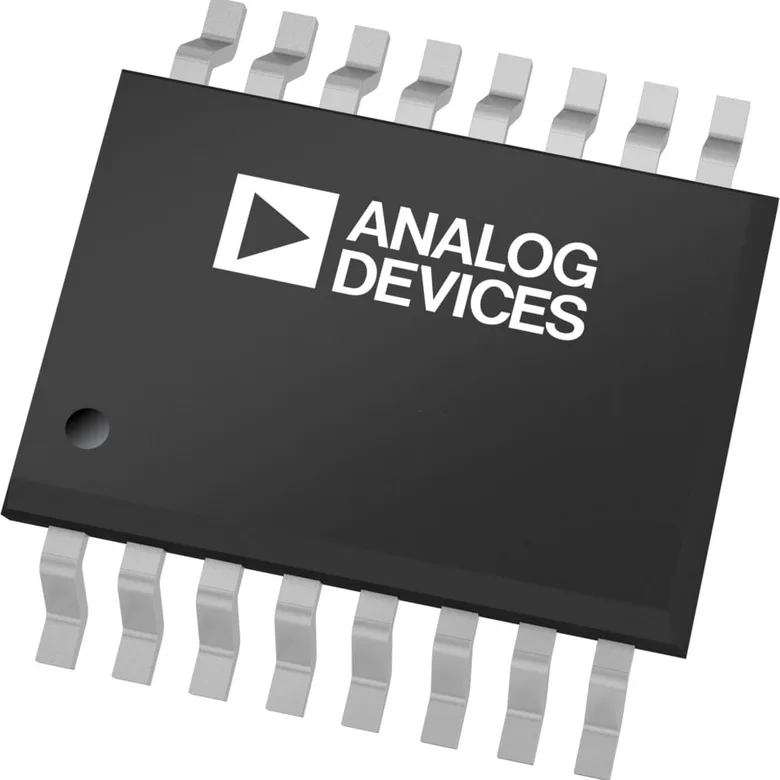

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM142E1BRQZ
Manufacturer
Manufacturer Product Number
ADUM142E1BRQZ
Description
DGTL ISOLTR 3KV 4CH GP 16-SSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3KV 4CH GP 16-SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Operating Temperature
-40°C ~ 125°C
Qualification
-
Voltage - Supply
1.7V ~ 5.5V
Data Rate
150Mbps
Technology
Magnetic Coupling
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
2/2
Supplier Device Package
16-QSOP
Package / Case
16-SSOP (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
75kV/µs
Propagation Delay tpLH / tpHL (Max)
13ns, 13ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
3ns
Type
General Purpose
Grade
-
Number of Channels
4
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
ADUM142E1BRQZ
7390063
505-ADUM142E1BRQZ-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 198
Packaging Quantity Unit Price Ext Price
1 121.000 ₫ 121.000 ₫
121.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
121.000 ₫
121.000 ₫
10
92.000 ₫
920.000 ₫
98
77.000 ₫
7.546.000 ₫
196
74.000 ₫
14.504.000 ₫
294
72.000 ₫
21.168.000 ₫
588
70.000 ₫
41.160.000 ₫
1,078
68.000 ₫
73.304.000 ₫
2,548
67.000 ₫
170.716.000 ₫
MOQ 1 · Order multiple 1
