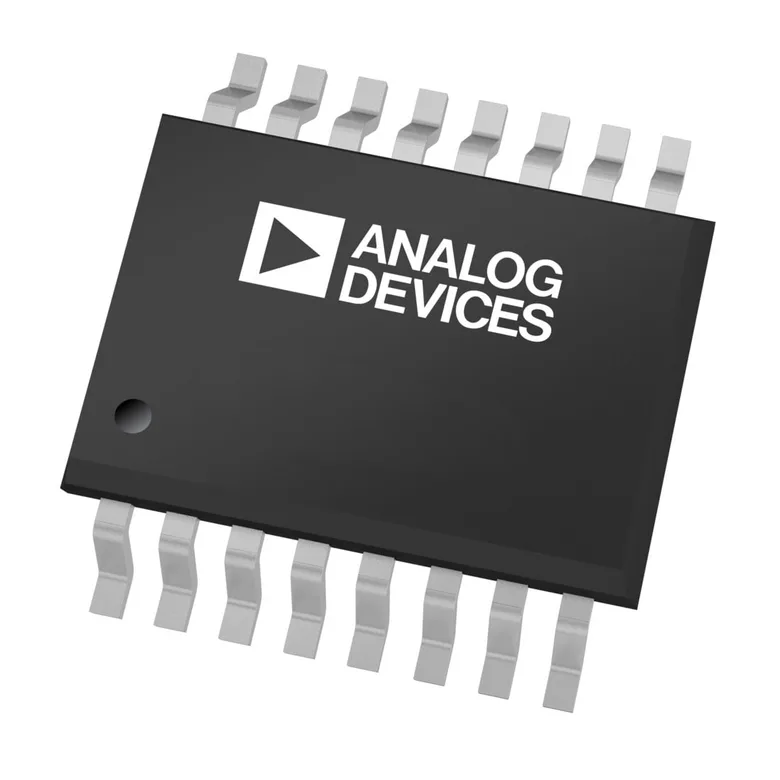

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM4401ARWZ-RL
Manufacturer
Manufacturer Product Number
ADUM4401ARWZ-RL
Description
DGTL ISOLTR 5KV 4CH GP 16-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 5KV 4CH GP 16-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Operating Temperature
-40°C ~ 105°C
Voltage - Supply
3V ~ 5.5V
Data Rate
1Mbps
Technology
Magnetic Coupling
Voltage - Isolation
5000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
3/1
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
100ns, 100ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
40ns
Type
General Purpose
Number of Channels
4
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Videos
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ADUM4401ARWZ-RL
3314133
ADUM4401ARWZ-RLCT-ND
ADUM4401ARWZ-RLDKR-ND
ADUM4401ARWZ-RLTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 444
Packaging Quantity Unit Price Ext Price
1 250.000 ₫ 250.000 ₫
250.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
250.000 ₫
250.000 ₫
10
195.000 ₫
1.950.000 ₫
25
181.000 ₫
4.525.000 ₫
100
168.000 ₫
16.800.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
250.000 ₫
250.000 ₫
10
195.000 ₫
1.950.000 ₫
25
181.000 ₫
4.525.000 ₫
100
168.000 ₫
16.800.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
155.000 ₫
155.000.000 ₫
MOQ 1,000 · Order multiple 1,000
