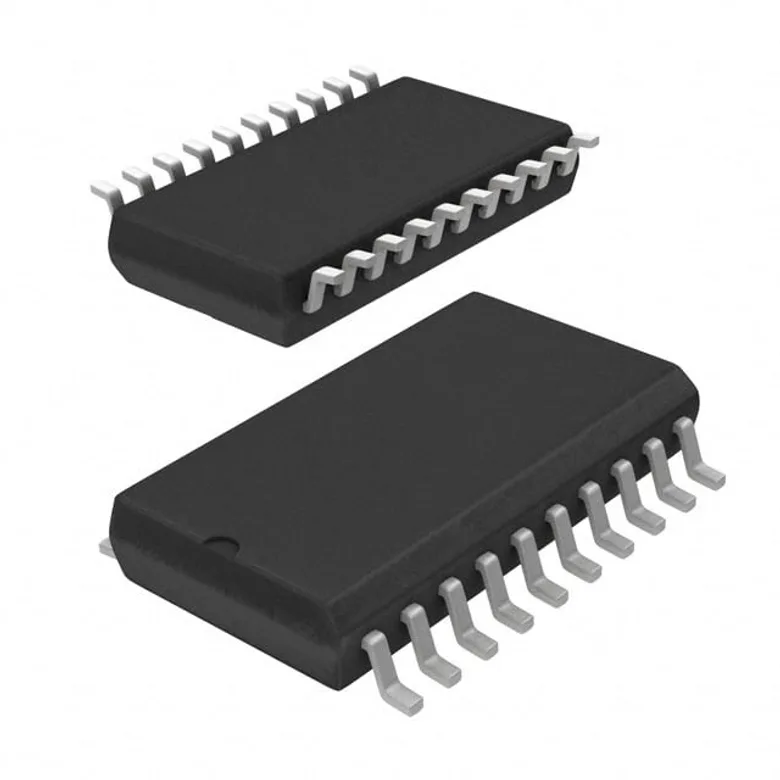

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM4471CRIZ-RL
Manufacturer
Manufacturer Product Number
ADUM4471CRIZ-RL
Description
DGTL ISOLTR 5KV 4CH GP 20-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
General Purpose Digital Isolator 5000Vrms 4 Channel 25Mbps 25kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Operating Temperature
-40°C ~ 105°C
Voltage - Supply
3V ~ 3.6V, 4.5V ~ 5.5V
Data Rate
25Mbps
Technology
Magnetic Coupling
Voltage - Isolation
5000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
3/1
Supplier Device Package
20-SOIC-IC
Package / Case
20-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
60ns, 60ns
Isolated Power
Yes
Channel Type
Unidirectional
Pulse Width Distortion (Max)
6ns
Type
General Purpose
Number of Channels
4
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
ADUM4471CRIZ-RL
3904699
ADUM4471CRIZ-RLTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 266.000 ₫ 266.000 ₫
266.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
266.000 ₫
266.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Alternate Packaging
ADUM4471CRIZ
DGTL ISOLTR 5KV 4CH GP 20-SOIC
436.000 ₫ Analog Devices Inc.
Substitutes
ADUM4471CRIZ
DGTL ISOLTR 5KV 4CH GP 20-SOIC
436.000 ₫ Analog Devices Inc.
