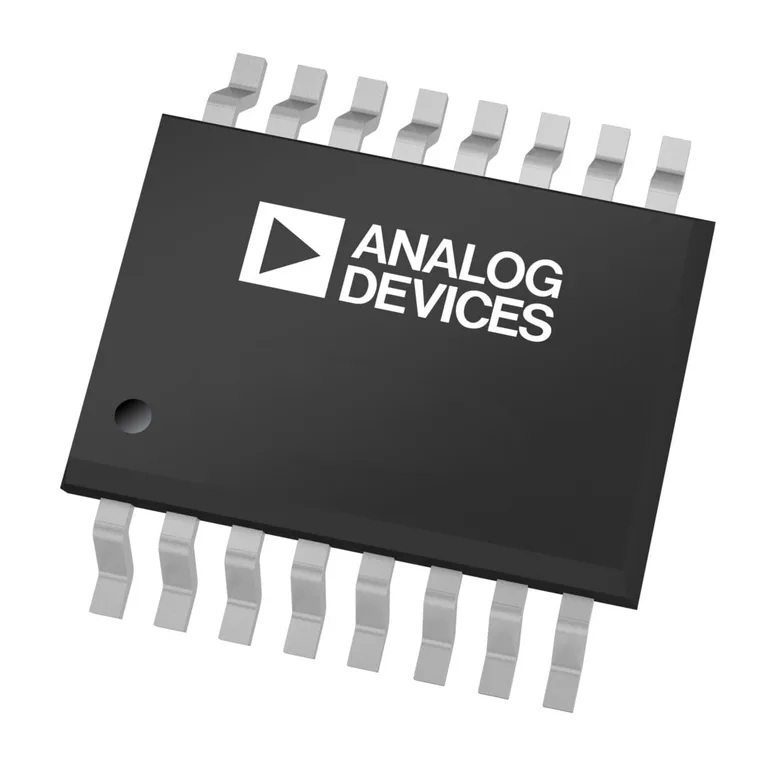

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. ADUM5401ARWZ-RL
Manufacturer
Manufacturer Product Number
ADUM5401ARWZ-RL
Description
DGTL ISOLTR 2.5KV 4CH GP 16-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 2.5KV 4CH GP 16-SOIC
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Operating Temperature
-40°C ~ 105°C
Voltage - Supply
3V ~ 5.5V
Data Rate
1Mbps
Technology
Magnetic Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
3/1
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
2.5ns, 2.5ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
100ns, 100ns
Isolated Power
Yes
Channel Type
Unidirectional
Pulse Width Distortion (Max)
40ns
Type
General Purpose
Number of Channels
4
Documents & Media
Resource Type
Link
Reference Designs
Design Resources
Related Documents
Training Modules
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ADUM5401ARWZ-RL
3828875
ADUM5401ARWZ-RLCT-ND
ADUM5401ARWZ-RLDKR-ND
ADUM5401ARWZ-RLTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 399.000 ₫ 399.000 ₫
399.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
399.000 ₫
399.000 ₫
10
316.000 ₫
3.160.000 ₫
25
295.000 ₫
7.375.000 ₫
100
281.000 ₫
28.100.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
399.000 ₫
399.000 ₫
10
316.000 ₫
3.160.000 ₫
25
295.000 ₫
7.375.000 ₫
100
281.000 ₫
28.100.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
249.000 ₫
249.000.000 ₫
MOQ 1,000 · Order multiple 1,000
