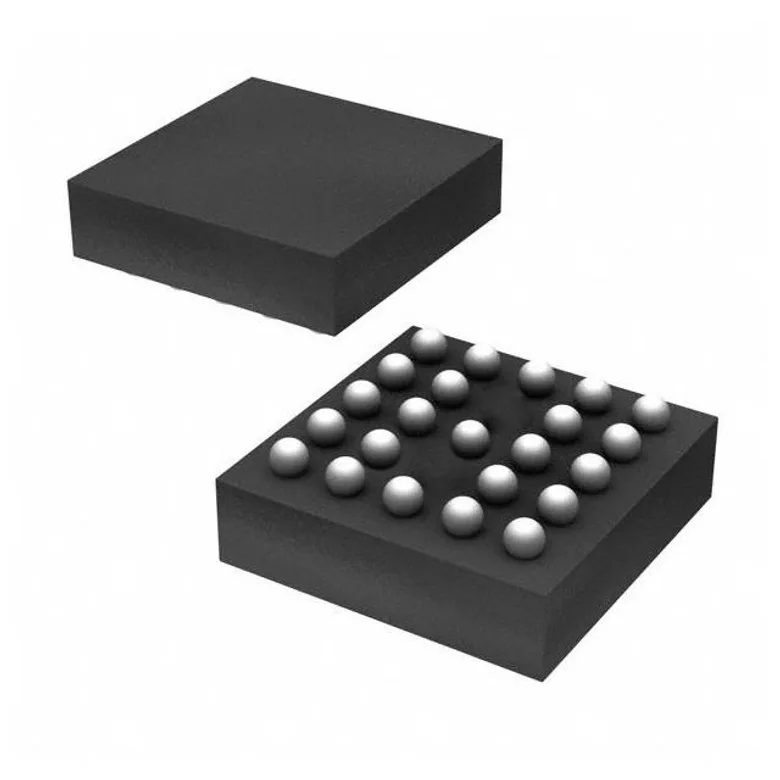

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc. SSM3525BCBZRL
Manufacturer
Manufacturer Product Number
SSM3525BCBZRL
Description
IC AMP CLSS D MONO 30.2W 23WLCSP
Manufacturer Standard Lead Time Contact us
Detailed Description
Amplifier IC 1-Channel (Mono) Class D 23-WLCSP (2.22x2.34)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc.
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply
4.5V ~ 17V
Output Type
1-Channel (Mono)
Max Output Power x Channels @ Load
30.2W x 1 @ 4Ohm, 15.2W x 2 @ 8Ohm
Features
Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Mounting Type
Surface Mount
Supplier Device Package
23-WLCSP (2.22x2.34)
Package / Case
23-UFBGA, WLCSP
Type
Class D
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
SSM3525BCBZRL
8600169
505-SSM3525BCBZRLCT-ND
505-SSM3525BCBZRLDKR-ND
505-SSM3525BCBZRLTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 207.000 ₫ 207.000 ₫
207.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
207.000 ₫
207.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
207.000 ₫
207.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
10,000
116.000 ₫
1.160.000.000 ₫
MOQ 10,000 · Order multiple 10,000
