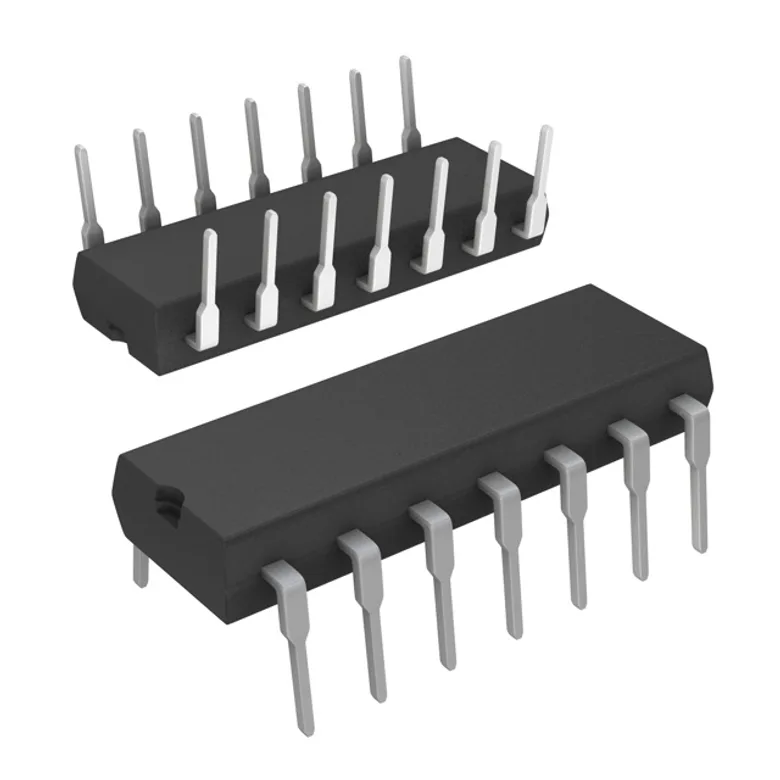

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated DS1010-75
Manufacturer
Manufacturer Product Number
DS1010-75
Description
IC DELAY LINE 10 TAP 75NS 14-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Delay Line IC Nonprogrammable 10 Tap 75ns 14-DIP (0.300", 7.62mm)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4.75V ~ 5.25V
Number of Taps/Steps
10
Delay to 1st Tap
7.5ns
Number of Independent Delays
1
Available Total Delays
75ns
Tap Increment
7.5 ns
Mounting Type
Through Hole
Supplier Device Package
14-PDIP
Package / Case
14-DIP (0.300", 7.62mm)
Function
Nonprogrammable
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
DS1010-75
444869
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
