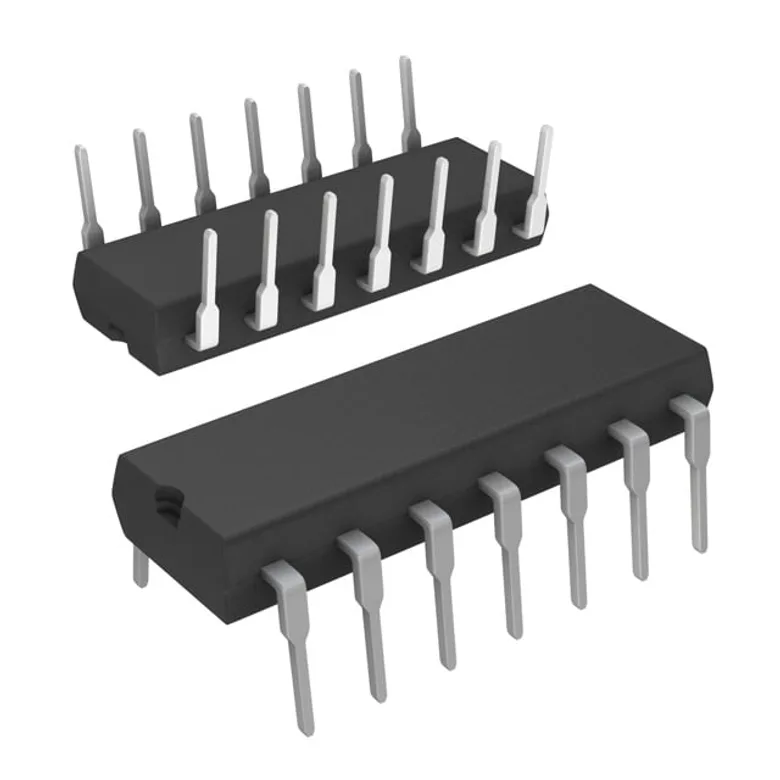

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated DS1013-100
Manufacturer
Manufacturer Product Number
DS1013-100
Description
IC DELAY LINE 100NS 14-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Delay Line IC Multiple, NonProgrammable Tap 100ns 14-DIP (0.300", 7.62mm)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4.75V ~ 5.25V
Delay to 1st Tap
100ns
Number of Independent Delays
3
Available Total Delays
100ns
Mounting Type
Through Hole
Supplier Device Package
14-PDIP
Package / Case
14-DIP (0.300", 7.62mm)
Function
Multiple, NonProgrammable
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
DS1013-100
445024
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
