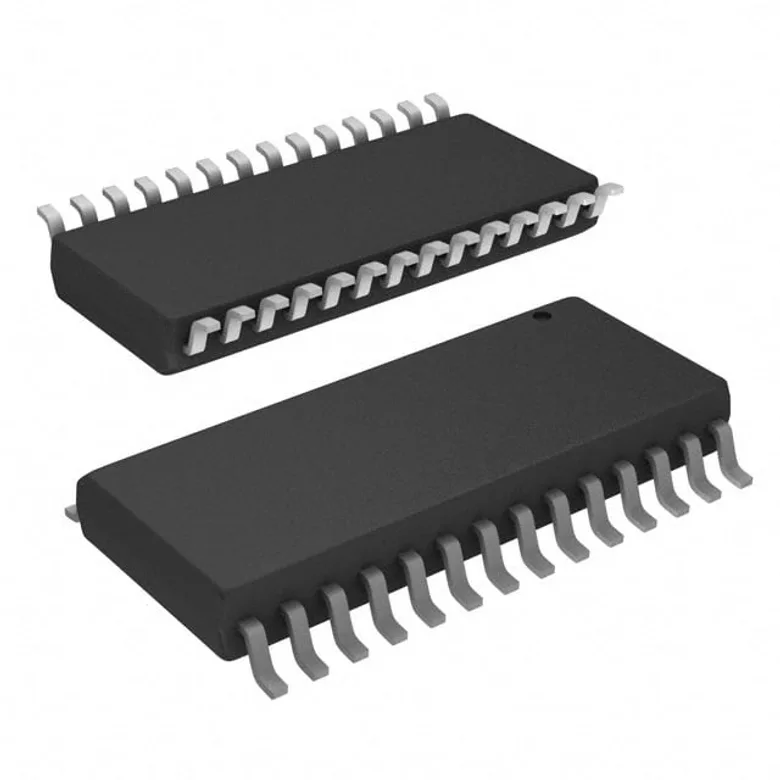

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated DS1501WZN+T&R
Manufacturer
Manufacturer Product Number
DS1501WZN+T&R
Description
IC RTC CLK/CALENDAR PAR 28SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
Real Time Clock (RTC) IC Clock/Calendar 256B Parallel 28-SOIC (0.295", 7.50mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Operating Temperature
-40°C ~ 85°C
DigiKey Programmable
Not Verified
Voltage - Supply
3V ~ 3.6V
Time Format
HH:MM:SS (24 hr)
Date Format
YY-MM-DD-dd
Features
Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer, Y2K
Mounting Type
Surface Mount
Supplier Device Package
28-SOIC
Memory Size
256B
Voltage - Supply, Battery
2.5V ~ 3.7V
Interface
Parallel
Package / Case
28-SOIC (0.295", 7.50mm Width)
Current - Timekeeping (Max)
4mA @ 3V ~ 3.6V
Type
Clock/Calendar
Documents & Media
Resource Type
Link
Datasheets
Application Notes
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
DS1501WZN+T&R
8635301
DS1501WZN+CT-ND
DS1501WZN+DKR-ND
DS1501WZN+TR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,452
Packaging Quantity Unit Price Ext Price
1 517.000 ₫ 517.000 ₫
517.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
517.000 ₫
517.000 ₫
10
413.000 ₫
4.130.000 ₫
25
386.000 ₫
9.650.000 ₫
100
358.000 ₫
35.800.000 ₫
250
344.000 ₫
86.000.000 ₫
500
336.000 ₫
168.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
517.000 ₫
517.000 ₫
10
413.000 ₫
4.130.000 ₫
25
386.000 ₫
9.650.000 ₫
100
358.000 ₫
35.800.000 ₫
250
344.000 ₫
86.000.000 ₫
500
336.000 ₫
168.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
346.000 ₫
346.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Alternate Packaging
DS1501WZN+
IC RTC CLK/CALENDAR PAR 28SOIC
571.000 ₫ Analog Devices Inc./Maxim Integrated
