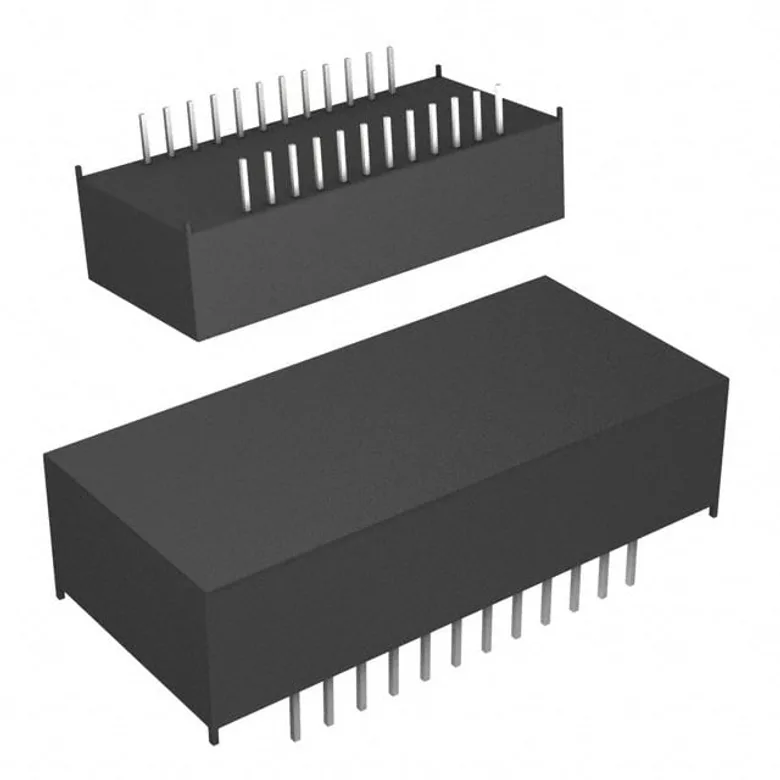

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated DS1742W-150+
Manufacturer
Manufacturer Product Number
DS1742W-150+
Description
IC RTC CLK/CALENDAR PAR 24EDIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Real Time Clock (RTC) IC Clock/Calendar 2KB Parallel 24-DIP Module (0.600", 15.24mm)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
DigiKey Programmable
Not Verified
Voltage - Supply
2.97V ~ 3.63V
Time Format
HH:MM:SS (24 hr)
Date Format
YY-MM-DD-dd
Features
Leap Year, NVSRAM, Y2K
Mounting Type
Through Hole
Supplier Device Package
24-EDIP
Memory Size
2KB
Voltage - Supply, Battery
-
Interface
Parallel
Package / Case
24-DIP Module (0.600", 15.24mm)
Current - Timekeeping (Max)
2mA @ 3.3V
Type
Clock/Calendar
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Application Notes
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
DS1742W-150+
951280
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
