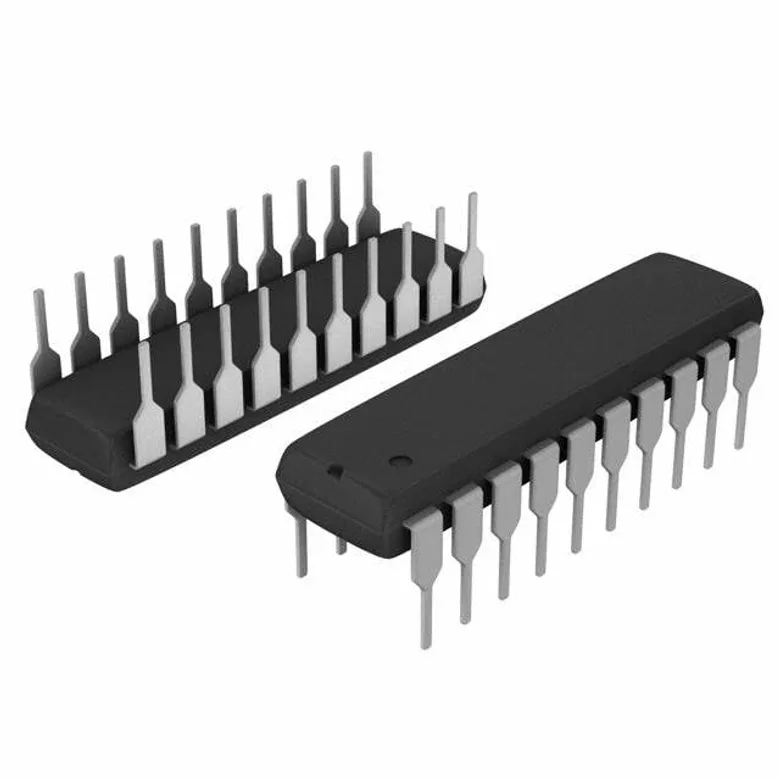

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated MAX038CPP+
Manufacturer
Manufacturer Product Number
MAX038CPP+
Description
IC FUNCTION GENERATOR 20DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Function Generator IC 40MHz 1 20-DIP (0.300", 7.62mm)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
DigiKey Programmable
Not Verified
Voltage - Supply
4.75V ~ 5.25V
Mounting Type
Through Hole
Output
CMOS, TTL
Ratio - Input:Output
1:3
Differential - Input:Output
No/No
Supplier Device Package
20-PDIP
PLL
No
Divider/Multiplier
Yes/Yes
Frequency - Max
40MHz
Package / Case
20-DIP (0.300", 7.62mm)
Type
Function Generator
Input
CMOS, TTL
Number of Circuits
1
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Part Numbering Guides
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
MAX038CPP+
947731
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
