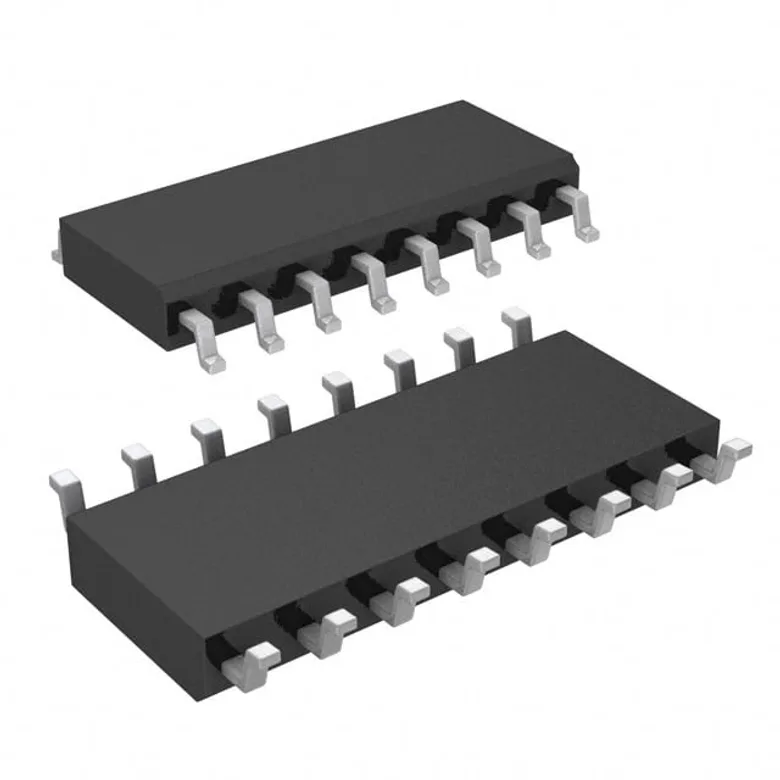

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated MAX14432FASE+T
Manufacturer
Manufacturer Product Number
MAX14432FASE+T
Description
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
General Purpose Digital Isolator 3750Vrms 4 Channel 200Mbps 50kV/µs (Typ) CMTI 16-SOIC (0.154", 3.90mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
1.71V ~ 5.5V
Data Rate
200Mbps
Technology
Capacitive Coupling
Voltage - Isolation
3750Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
2/2
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
1.6ns, 1.4ns (Max)
Common Mode Transient Immunity (Min)
50kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max)
9.4ns, 9.2ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
2ns
Type
General Purpose
Number of Channels
4
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
MAX14432FASE+T
8571179
MAX14432FASE+T-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,500
Packaging Quantity Unit Price Ext Price
1 120.000 ₫ 120.000 ₫
120.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
120.000 ₫
300.000.000 ₫
MOQ 2,500 · Order multiple 2,500
Alternate Packaging
MAX14432FASE+
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
238.000 ₫ Analog Devices Inc./Maxim Integrated
Substitutes
MAX14432FASE+
DGTL ISOLTR 3.75KV 4CH GP 16SOIC
238.000 ₫ Analog Devices Inc./Maxim Integrated
