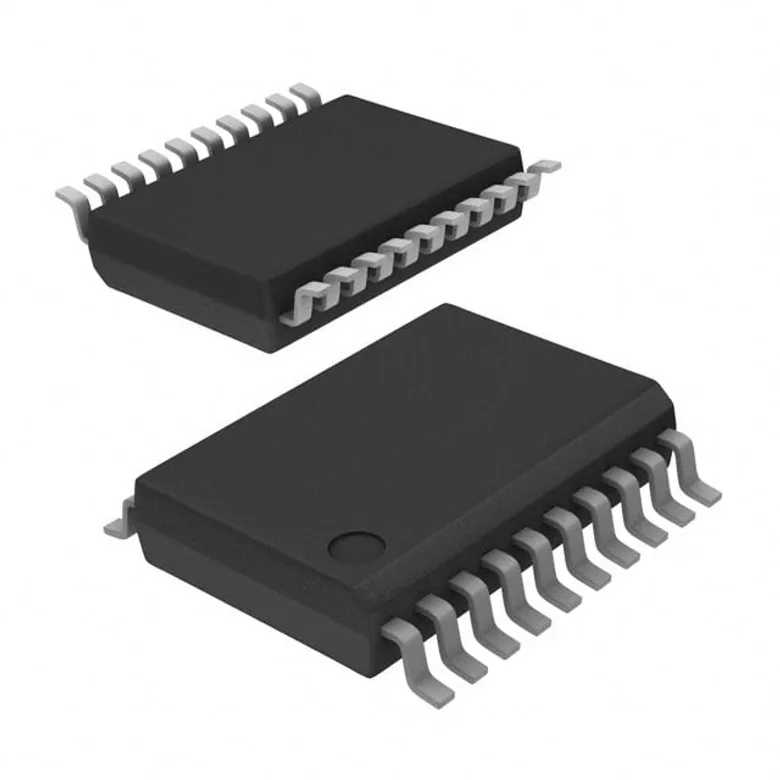

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated MAX3225CAP+T
Manufacturer
Manufacturer Product Number
MAX3225CAP+T
Description
IC TRANSCEIVER FULL 2/2 20SSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
2/2 Transceiver Full RS232 20-SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Operating Temperature
0°C ~ 70°C
Voltage - Supply
3V ~ 5.5V
Number of Drivers/Receivers
2/2
Data Rate
1Mbps
Protocol
RS232
Mounting Type
Surface Mount
Supplier Device Package
20-SSOP
Package / Case
20-SSOP (0.209", 5.30mm Width)
Receiver Hysteresis
500 mV
Duplex
Full
Type
Transceiver
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Application Notes
Environmental Information
Part Numbering Guides
Additional Resources
Attribute
Description
Part Number Alias
MAX3225CAP+T
9760353
MAX3225CAP+TCT-ND
MAX3225CAP+TDKR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,530
Packaging Quantity Unit Price Ext Price
1 248.000 ₫ 248.000 ₫
248.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
248.000 ₫
248.000 ₫
10
193.000 ₫
1.930.000 ₫
25
179.000 ₫
4.475.000 ₫
100
164.000 ₫
16.400.000 ₫
250
161.000 ₫
40.250.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
248.000 ₫
248.000 ₫
10
193.000 ₫
1.930.000 ₫
25
179.000 ₫
4.475.000 ₫
100
164.000 ₫
16.400.000 ₫
250
161.000 ₫
40.250.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
MAX3225CAP+
IC TRANSCEIVER FULL 2/2 20SSOP
247.000 ₫ Analog Devices Inc./Maxim Integrated
Substitutes
SN75C3223EDBR
IC TRANSCEIVER FULL 2/2 20SSOP
73.000 ₫ Texas Instruments
SN75C3223EDB
IC TRANSCEIVER FULL 2/2 20SSOP
85.000 ₫ Texas Instruments
ICL3225ECAZ-T
IC TRANSCEIVER FULL 2/2 20SSOP
41.000 ₫ Renesas Electronics Corporation
SN75C3223DBR
IC TRANSCEIVER FULL 2/2 20SSOP
62.000 ₫ Texas Instruments
ICL3225EIAZ
IC TRANSCEIVER FULL 2/2 20SSOP
80.000 ₫ Renesas Electronics Corporation
ICL3225ECAZ
IC TRANSCEIVER FULL 2/2 20SSOP
80.000 ₫ Renesas Electronics Corporation
ICL3225EIAZ-T
IC TRANSCEIVER FULL 2/2 20SSOP
41.000 ₫ Renesas Electronics Corporation
SN75C3223EPW
IC TRANSCEIVER FULL 2/2 20TSSOP
86.000 ₫ Texas Instruments
MAX3225ECAP+T
IC TRANSCEIVER FULL 2/2 20SSOP
286.000 ₫ Analog Devices Inc./Maxim Integrated
SN65C3223EDBR
IC TRANSCEIVER FULL 2/2 20SSOP
66.000 ₫ Texas Instruments
SN65C3223EPW
IC TRANSCEIVER FULL 2/2 20TSSOP
71.000 ₫ Texas Instruments
SN65C3223EPWR
IC TRANSCEIVER FULL 2/2 20TSSOP
83.000 ₫ Texas Instruments
