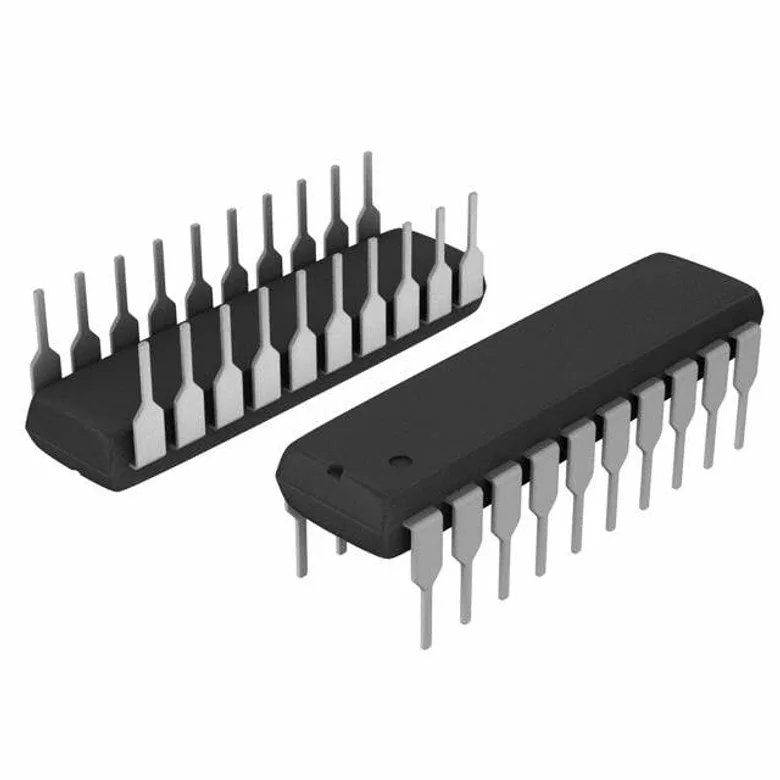

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated MAX3225CPP+
Manufacturer
Manufacturer Product Number
MAX3225CPP+
Description
IC TRANSCEIVER FULL 2/2 20PDIP
Manufacturer Standard Lead Time Contact us
Detailed Description
2/2 Transceiver Full RS232 20-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Voltage - Supply
3V ~ 5.5V
Number of Drivers/Receivers
2/2
Data Rate
1Mbps
Protocol
RS232
Mounting Type
Through Hole
Supplier Device Package
20-PDIP
Package / Case
20-DIP (0.300", 7.62mm)
Receiver Hysteresis
500 mV
Duplex
Full
Type
Transceiver
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Application Notes
Environmental Information
Product Change Notices
Part Numbering Guides
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
MAX3225CPP+
2238943
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
