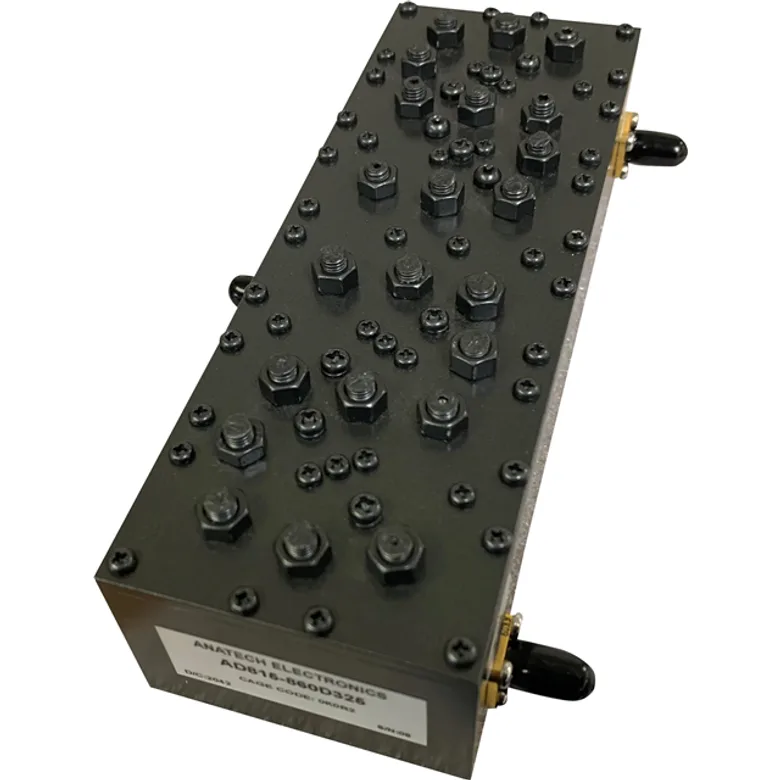

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Anatech Electronics Inc. AD815-860D325
Manufacturer
Manufacturer Product Number
AD815-860D325
Description
806-824 MHZ, 851-869 MHZ CAVITY
Manufacturer Standard Lead Time 42 Days
Detailed Description
RF Duplexer 806MHz ~ 824MHz / 851MHz ~ 869MHz Module, SMA Connectors
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Anatech Electronics Inc.
Frequency Bands (Low / High)
806MHz ~ 824MHz / 851MHz ~ 869MHz
Low Band Attenuation (min / max dB)
-
High Band Attenuation (min / max dB)
-
Return Loss (Low Band / High Band)
18.0dB / 18.0dB
Mounting Type
Chassis Mount
Package / Case
Module, SMA Connectors
Type
Duplexer
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
AD815-860D325
15652076
3078-AD815-860D325-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 100
Packaging Quantity Unit Price Ext Price
1 37.267.000Â â‚« 37.267.000Â â‚«
37.267.000Â â‚«
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
37.267.000Â â‚«
37.267.000Â â‚«
MOQ 1 · Order multiple 1
