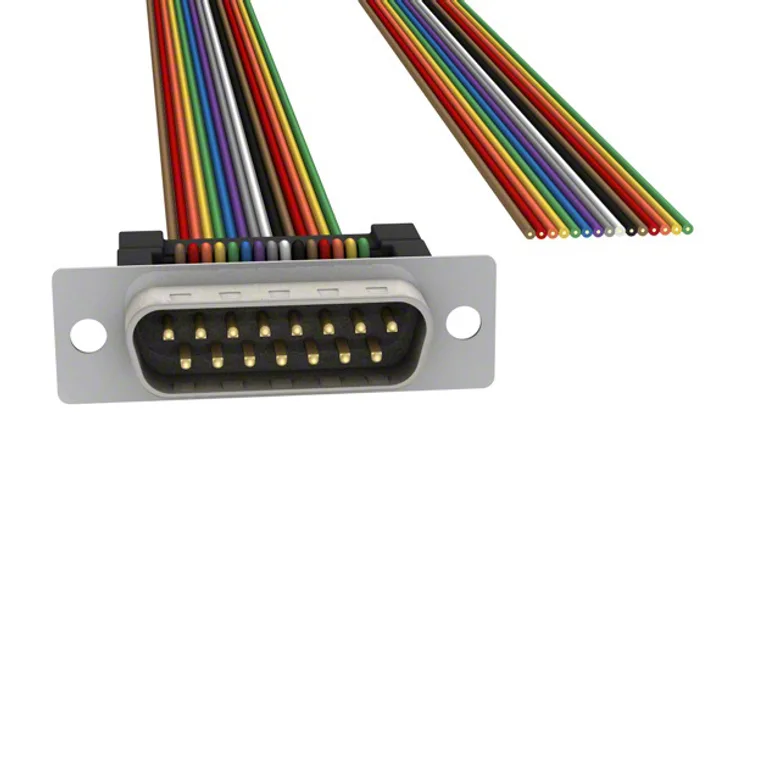

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Assmann WSW Components H7PXH-1506M
Manufacturer
Manufacturer Product Number
H7PXH-1506M
Description
CBL D-SUB- HHMM15H/AE15M/X
Manufacturer Standard Lead Time Contact us
Detailed Description
CBL D-SUB- HHMM15H/AE15M/X
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Assmann WSW Components
Contact Finish
Gold
Color
Multiple, Ribbon
Usage
-
1st Connector
Plug, Male Pins
2nd Connector
Individual Wire Leads
Length
6.00' (1.83m)
Shielding
Unshielded
Contact Finish Thickness
10.0µin (0.25µm)
Number of Positions
15
Type
DB15
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H7PXH-1506M
998770
H7PXH-1506M-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 196.000 ₫ 196.000 ₫
196.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
196.000 ₫
196.000 ₫
10
177.000 ₫
1.770.000 ₫
25
168.000 ₫
4.200.000 ₫
50
163.000 ₫
8.150.000 ₫
100
155.000 ₫
15.500.000 ₫
250
139.000 ₫
34.750.000 ₫
500
131.000 ₫
65.500.000 ₫
1,000
115.000 ₫
115.000.000 ₫
MOQ 1 · Order multiple 1
Alternate Color
H7PXH-1506G
CBL D-SUB- HHMM15H/AE15G/X
132.000 ₫ Assmann WSW Components
Alternate Length
H7PXH-1510M
CBL D-SUB- HHMM15H/AE15M/X
281.000 ₫ Assmann WSW Components
Assembly Components
A-DSF 15 LPIII/Z
CONN D-SUB PLUG 15POS IDC
57.000 ₫ Assmann WSW Components
AWG28-15/F/300
CBL RIBN 15COND 0.05 MULTI 300'
50.000 ₫ Assmann WSW Components
