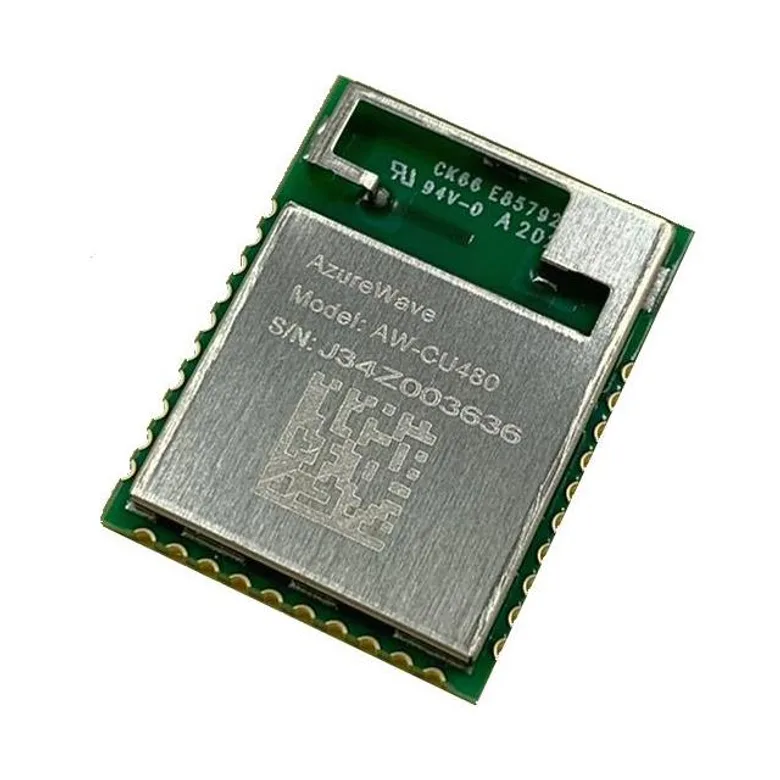

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
AzureWave Technologies, Inc. AW-CU480
Manufacturer
Manufacturer Product Number
AW-CU480
Description
BLE 5.0 Stamp LGA module
Manufacturer Standard Lead Time 30 Days
Detailed Description
Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Included Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
AzureWave Technologies, Inc.
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
1.9V ~ 3.6V
Power - Output
10dBm
Data Rate
2Mbps
Sensitivity
-94dBm
Protocol
Bluetooth v5.0
Mounting Type
Surface Mount
Current - Receiving
10mA
Current - Transmitting
10mA
Antenna Type
Antenna Included
Utilized IC / Part
QN9090THN
Frequency
2.4GHz
Memory Size
-
Package / Case
LGA Module
Modulation
DQPSK, GFSK
RF Family/Standard
Bluetooth
Serial Interfaces
UART
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
AW-CU480
25881646
5904-AW-CU480TR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 10
Packaging Quantity Unit Price Ext Price
1 130.000 ₫ 130.000 ₫
130.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1
130.000 ₫
130.000 ₫
MOQ 1 · Order multiple 1
