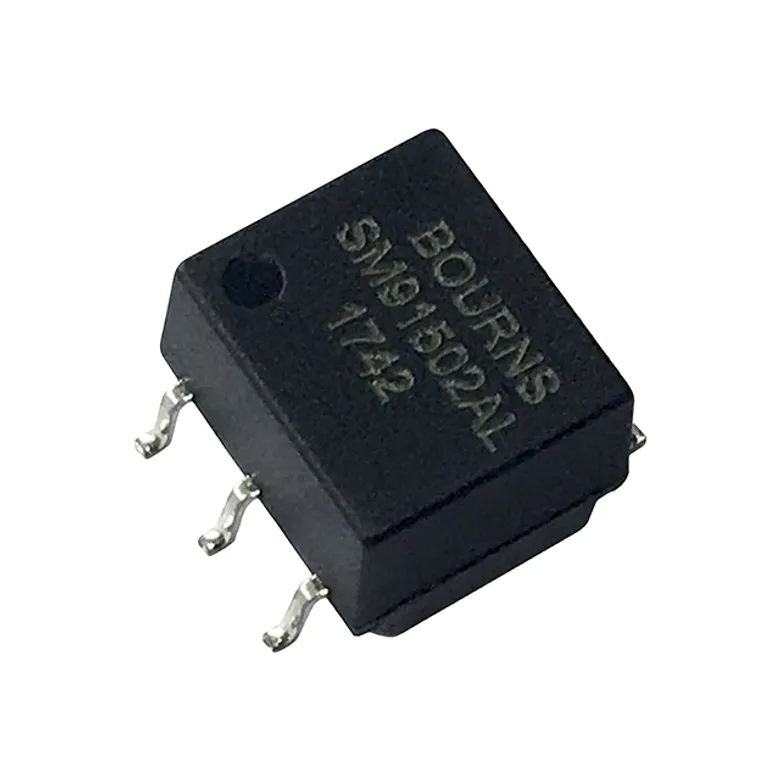

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Bourns Inc. SM91502ALE
Manufacturer
Manufacturer Product Number
SM91502ALE
Description
BMS XFORMER 1-CH 1000V AECQ +125
Manufacturer Standard Lead Time Contact us
Detailed Description
150µH Pulse Transformer 1CT:1CT Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Bourns Inc.
Operating Temperature
-40°C ~ 125°C
Qualification
AEC-Q200
Transformer Type
-
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.300" L x 0.265" W (7.62mm x 6.73mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
150µH
Grade
Automotive
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
SM91502ALE
9650132
SM91502ALECT-ND
SM91502ALEDKR-ND
SM91502ALETR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,968
Packaging Quantity Unit Price Ext Price
1 97.000 ₫ 97.000 ₫
97.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
97.000 ₫
97.000 ₫
10
88.000 ₫
880.000 ₫
25
85.000 ₫
2.125.000 ₫
50
82.000 ₫
4.100.000 ₫
100
80.000 ₫
8.000.000 ₫
250
76.000 ₫
19.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
97.000 ₫
97.000 ₫
10
88.000 ₫
880.000 ₫
25
85.000 ₫
2.125.000 ₫
50
82.000 ₫
4.100.000 ₫
100
80.000 ₫
8.000.000 ₫
250
76.000 ₫
19.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
800
72.000 ₫
57.600.000 ₫
1,600
70.000 ₫
112.000.000 ₫
2,400
69.000 ₫
165.600.000 ₫
MOQ 800 · Order multiple 800
