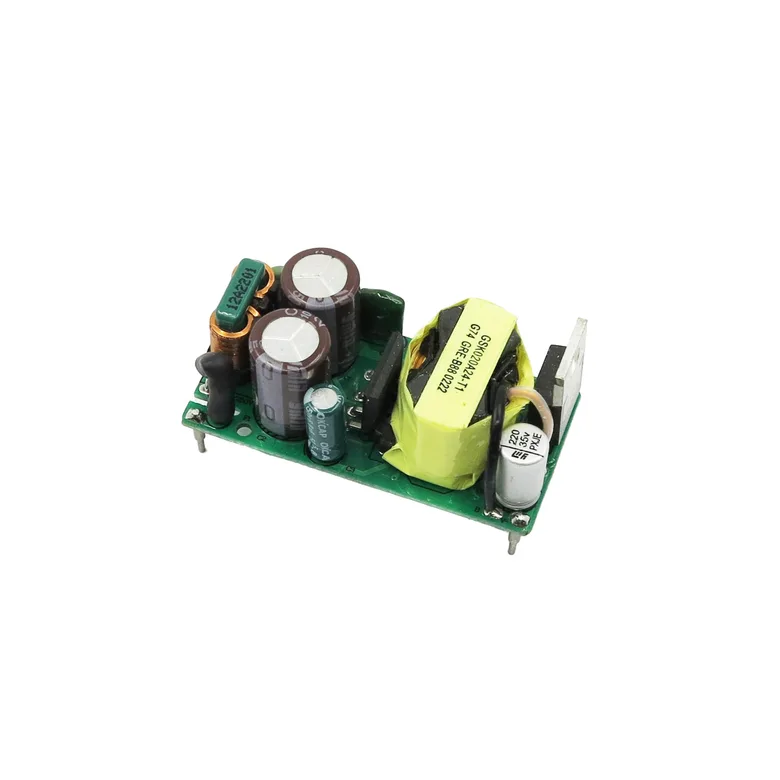

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Brightworks Technology, Inc GSK020A24
Manufacturer
Manufacturer Product Number
GSK020A24
Description
AC/DC CONVERTER 24V 20W
Manufacturer Standard Lead Time 3 Days
Detailed Description
Open Frame AC DC Converters 1 Output 24V 840mA 85 ~ 305 VAC, 120 ~ 430 VDC Input
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Brightworks Technology, Inc
Power (Watts)
20 W
Number of Outputs
1
Current - Output (Max)
840mA
Standard Number
EN55024; EN55035 ; EN61588-16; EN61000-3-2; EN61000-3-3 ; EN61000-4.2 ; EN61000-4-3 ; EN61000-4-4 ; EN61000-4-5 ; EN61000-4-6 ; EN61000-4-9 ; EN62368-1
Operating Temperature
-30°C ~ 70°C (With Derating)
Applications
ITE (Commercial)
Size / Dimension
1.93" L x 0.94" W x 0.71" H (49.0mm x 24.0mm x 18.0mm)
Load Regulation
±0.5%
Line Regulation
±0.3%
Features
-
Approval Agency
CB, CE, cETLUS, FCC
Mounting Type
Through Hole
Voltage - Input
85 ~ 305 VAC, 120 ~ 430 VDC
Efficiency
87%
Voltage - Output 1
24V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Package / Case
4-DIP Module
Type
Open Frame
Weight
-
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
GSK020A24
25600459
4723-GSK020A24-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 149
Packaging Quantity Unit Price Ext Price
1 571.000 ₫ 571.000 ₫
571.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
571.000 ₫
571.000 ₫
5
554.000 ₫
2.770.000 ₫
10
537.000 ₫
5.370.000 ₫
25
510.000 ₫
12.750.000 ₫
50
495.000 ₫
24.750.000 ₫
100
460.000 ₫
46.000.000 ₫
250
453.000 ₫
113.250.000 ₫
MOQ 1 · Order multiple 1
