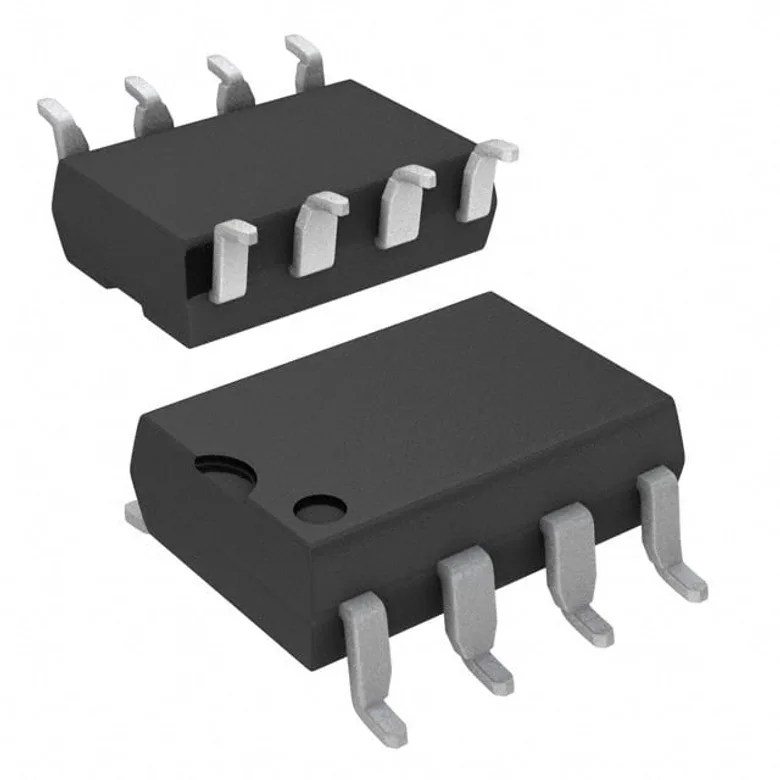

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Broadcom Limited HCPL-2612#500
Manufacturer
Manufacturer Product Number
HCPL-2612#500
Description
OPTOISO 3.75KV RECEIVER 8DIP GW
Manufacturer Standard Lead Time Contact us
Detailed Description
Optoisolator Line Receiver 3750Vrms 1 Channel 8-DIP Gull Wing
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Broadcom Limited
Voltage - Forward (Vf) (Typ)
2.3 V
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
4.5V ~ 5.5V
Input Type
AC, DC
Current - Output / Channel
50mA
Voltage - Isolation
3750Vrms
Approval Agency
CSA, UR
Mounting Type
Surface Mount
Supplier Device Package
8-DIP Gull Wing
Package / Case
8-SMD, Gull Wing
Rise / Fall Time (Typ)
24ns, 10ns
Common Mode Transient Immunity (Min)
3.5kV/µs
Propagation Delay tpLH / tpHL (Max)
75ns, 75ns
Type
Line Receiver
Number of Channels
1
Current - DC Forward (If) (Max)
60 mA
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
HCPL-2612#500
1234319
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
HCPL-2612-500E
OPTOISO 3.75KV RECEIVER 8DIP GW
229.000Â â‚« Broadcom Limited
