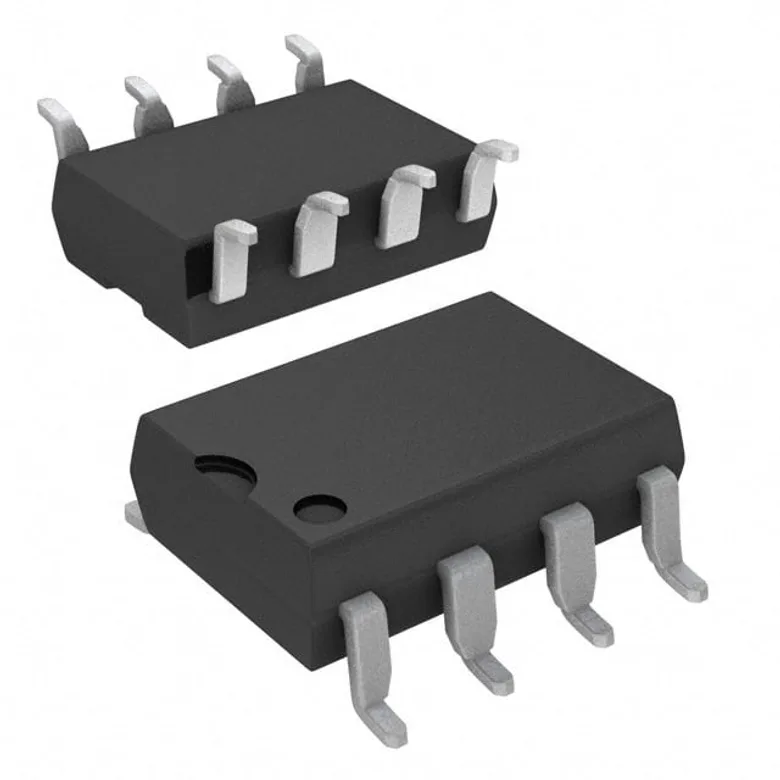

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Broadcom Limited HCPL-3140#560
Manufacturer
Manufacturer Product Number
HCPL-3140#560
Description
OPTOISO 3.75KV 1CH GT DVR 8DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Broadcom Limited
Voltage - Output Supply
10V ~ 30V
Operating Temperature
-40°C ~ 100°C
Qualification
-
Voltage - Forward (Vf) (Typ)
1.5V
Current - Peak Output
600mA
Technology
Optical Coupling
Current - Output High, Low
400mA, 400mA
Voltage - Isolation
3750Vrms
Approval Agency
CSA, IEC/EN/DIN, UR
Mounting Type
Surface Mount
Supplier Device Package
8-DIP Gull Wing
Package / Case
8-SMD, Gull Wing
Rise / Fall Time (Typ)
50ns, 50ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
700ns, 700ns
Pulse Width Distortion (Max)
-
Grade
-
Number of Channels
1
Current - DC Forward (If) (Max)
25 mA
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
HCPL-3140#560
1234723
