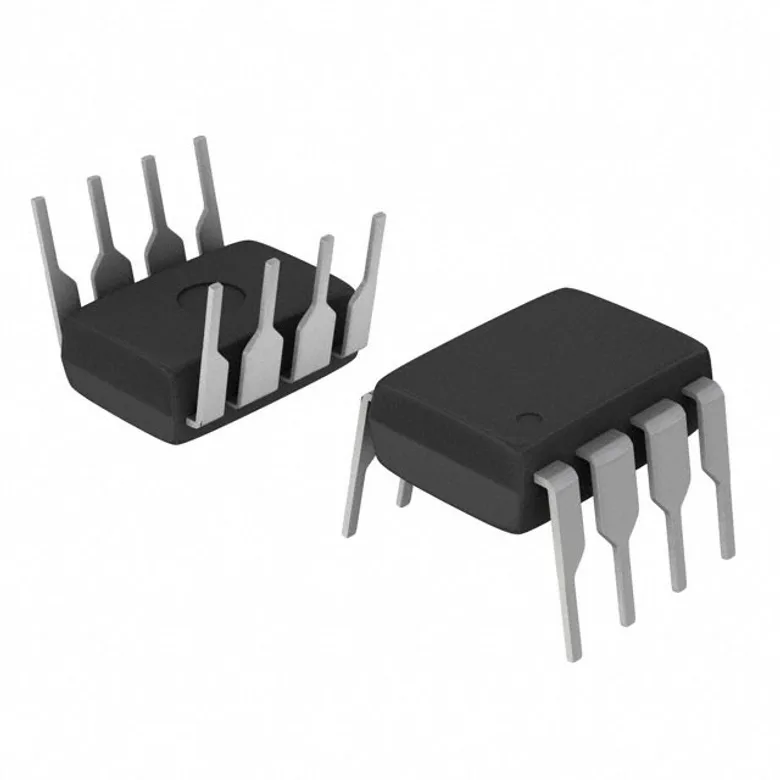

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Broadcom Limited HCPL-4100
Manufacturer
Manufacturer Product Number
HCPL-4100
Description
OPTOISO 3.75KV TRNSMTR 8DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
OPTOISO 3.75KV TRNSMTR 8DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Broadcom Limited
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
4.5V ~ 20V
Input Type
Logic
Current - Output / Channel
30mA
Voltage - Isolation
3750Vrms
Approval Agency
CSA, UR
Mounting Type
Through Hole
Supplier Device Package
8-DIP
Package / Case
8-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ)
16ns, 23ns
Common Mode Transient Immunity (Min)
1kV/µs
Propagation Delay tpLH / tpHL (Max)
1.6µs, 1µs
Type
Current Loop Transmitter
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Additional Resources
Attribute
Description
Part Number Alias
HCPL-4100
637412
516-1148-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 277
Packaging Quantity Unit Price Ext Price
1 328.000 ₫ 328.000 ₫
328.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
328.000 ₫
328.000 ₫
50
222.000 ₫
11.100.000 ₫
100
211.000 ₫
21.100.000 ₫
500
193.000 ₫
96.500.000 ₫
1,000
186.000 ₫
186.000.000 ₫
MOQ 1 · Order multiple 1
