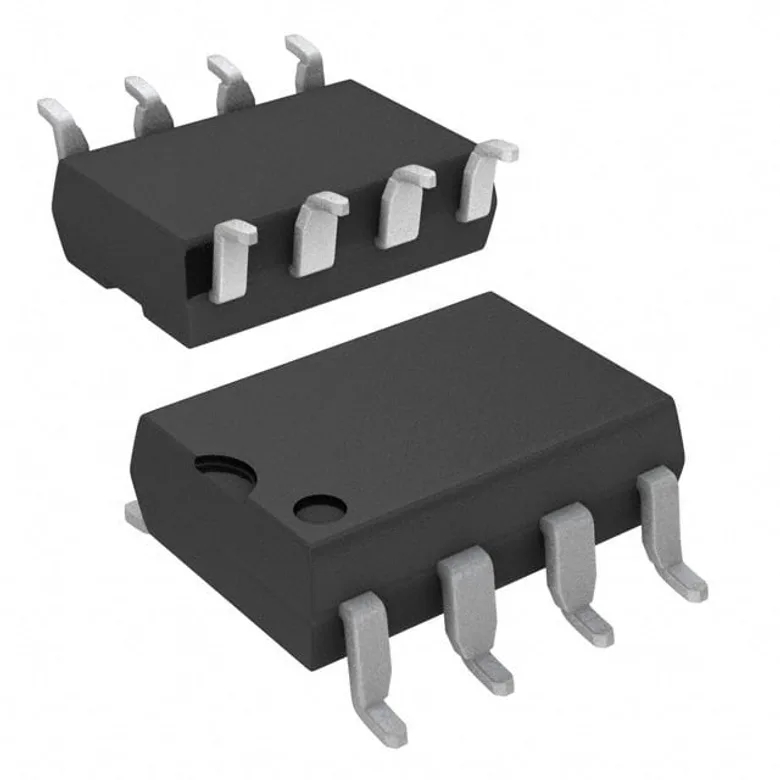

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Broadcom Limited HCPL-4200#300
Manufacturer
Manufacturer Product Number
HCPL-4200#300
Description
OPTOISO 3.75KV RECEIVER 8DIP GW
Manufacturer Standard Lead Time Contact us
Detailed Description
OPTOISO 3.75KV RECEIVER 8DIP GW
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Broadcom Limited
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
4.5V ~ 20V
Input Type
DC
Current - Output / Channel
25mA
Voltage - Isolation
3750Vrms
Approval Agency
CSA, UR
Mounting Type
Surface Mount
Supplier Device Package
8-DIP Gull Wing
Package / Case
8-SMD, Gull Wing
Rise / Fall Time (Typ)
55ns, 15ns
Common Mode Transient Immunity (Min)
1kV/µs
Propagation Delay tpLH / tpHL (Max)
1.6µs, 1µs
Type
Current Loop Receiver
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
HCPL-4200#300
1235934
HCPL-4200#300-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 186.000 ₫ 186.000 ₫
186.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
500
186.000 ₫
93.000.000 ₫
MOQ 500 · Order multiple 500
Alternate Packaging
HCPL-4200#500
OPTOISO 3.75KV RECEIVER 8DIP GW
Substitutes
HCPL-4200-300E
OPTOISO 3.75KV RECEIVER 8DIP GW
233.000 ₫ Broadcom Limited
