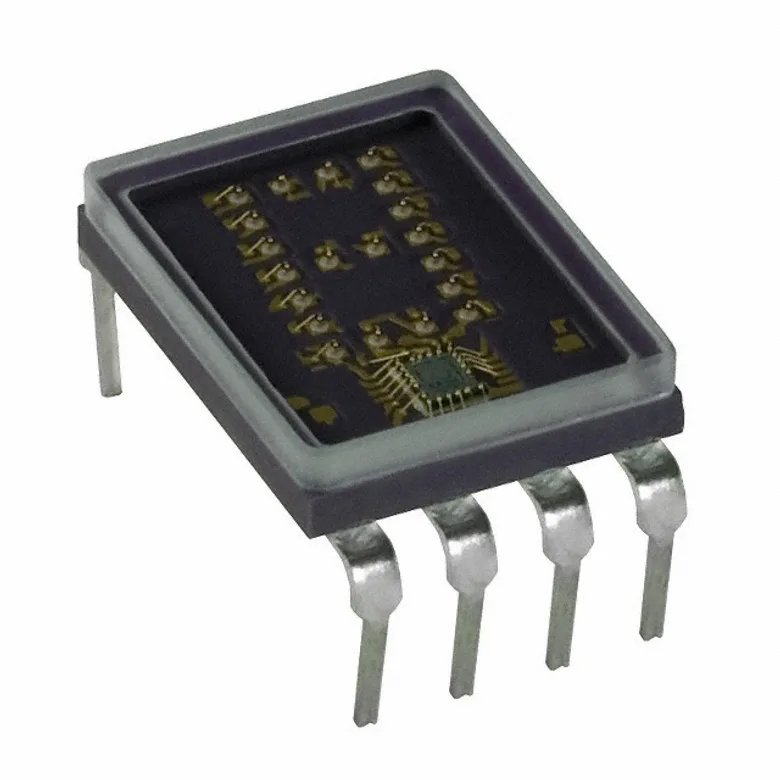

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Broadcom Limited HDSP-0771
Manufacturer
Manufacturer Product Number
HDSP-0771
Description
DISPLAY 7-SEG 0.29" SGL RED 8DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Display Modules - LED Character and Numeric Red 7-Segment 1 Character 10mA 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) 8-DIP (0.600", 15.20mm)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Broadcom Limited
Product Status
End of life
Power Dissipation (Max)
963mW
Digit/Alpha Size
0.29" (7.37mm)
Voltage - Forward (Vf) (Typ)
-
Color
Red
Display Type
7-Segment
Size / Dimension
0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm)
Current - Test
10mA
Number of Characters
1
Wavelength - Peak
635nm
Package / Case
8-DIP (0.600", 15.20mm)
Millicandela Rating
0.26mcd ~ 1.82mcd
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
End of life
Additional Resources
Attribute
Description
Part Number Alias
HDSP-0771
1233326
HDSP-0771-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 1.655.000Â â‚« 1.655.000Â â‚«
1.655.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
75
1.655.000Â â‚«
124.125.000Â â‚«
MOQ 75 · Order multiple 75
