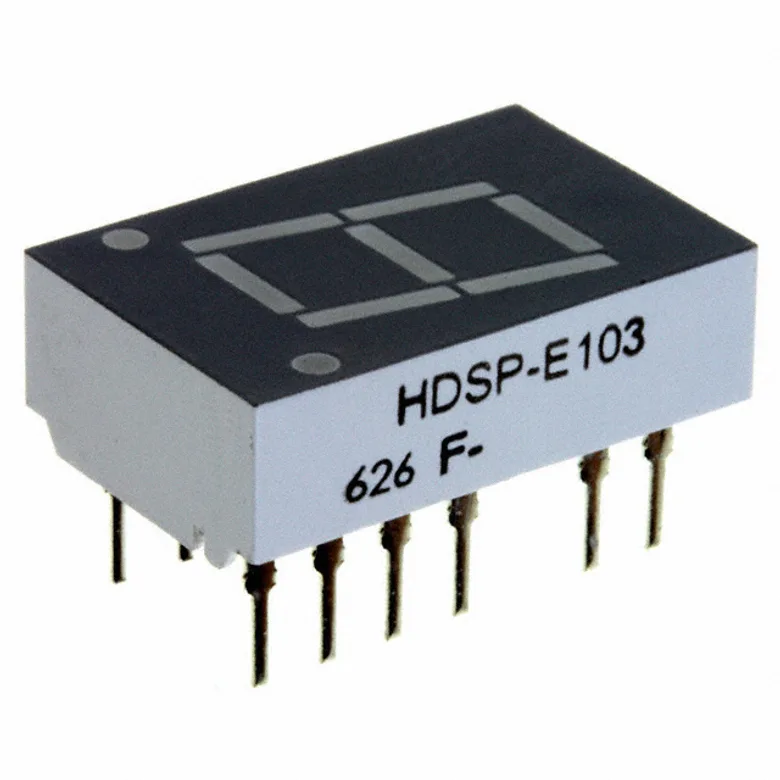

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Broadcom Limited HDSP-E103
Manufacturer
Manufacturer Product Number
HDSP-E103
Description
DISPLAY 7SEG 0.43" SGL RED 14DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.7V 5mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm), 10 Leads
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Broadcom Limited
Power Dissipation (Max)
37mW
Digit/Alpha Size
0.43" (11.00mm)
Voltage - Forward (Vf) (Typ)
1.7V
Color
Red
Display Type
7-Segment
Size / Dimension
0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm)
Current - Test
5mA
Number of Characters
1
Wavelength - Peak
645nm
Package / Case
14-DIP (0.300", 7.62mm), 10 Leads
Millicandela Rating
3.9mcd
Common Pin
Common Cathode
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HDSP-E103
637491
516-1227-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 432
Packaging Quantity Unit Price Ext Price
1 152.000Â â‚« 152.000Â â‚«
152.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
152.000Â â‚«
152.000Â â‚«
10
114.000Â â‚«
1.140.000Â â‚«
200
87.000Â â‚«
17.400.000Â â‚«
600
81.000Â â‚«
48.600.000Â â‚«
1,000
78.000Â â‚«
78.000.000Â â‚«
2,000
76.000Â â‚«
152.000.000Â â‚«
MOQ 1 · Order multiple 1
