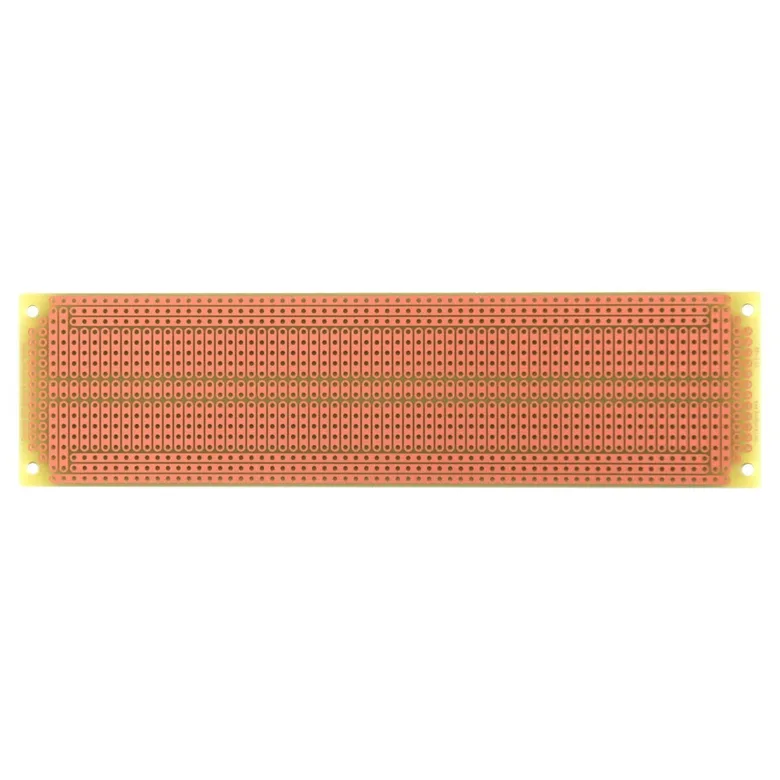

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
BusBoard Prototype Systems BR1
Manufacturer
Manufacturer Product Number
BR1
Description
SOLDERABLE BB PCB 830+PT SILKSCR
Manufacturer Standard Lead Time Contact us
Detailed Description
SOLDERABLE BB PCB 830+PT SILKSCR
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
BusBoard Prototype Systems
Circuit Pattern
Common Bus
Edge Contacts
-
Size / Dimension
7.05" L x 1.85" W (179.0mm x 47.0mm)
Plating
Plated Through Hole (PTH)
Material
FR4 Epoxy Glass
Pitch
0.1" (2.54mm) Grid
Proto Board Type
Breadboard, General Purpose
Board Thickness
0.063" (1.60mm)
Hole Diameter
0.042" (1.07mm)
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
BR1
19200395
4526-BR1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 86
Packaging Quantity Unit Price Ext Price
1 186.000Â â‚« 186.000Â â‚«
186.000Â â‚«
All prices are shown in the selected currency
Bag · Digikey
Quantity Unit Price Ext Price
1
186.000Â â‚«
186.000Â â‚«
MOQ 1 · Order multiple 1
