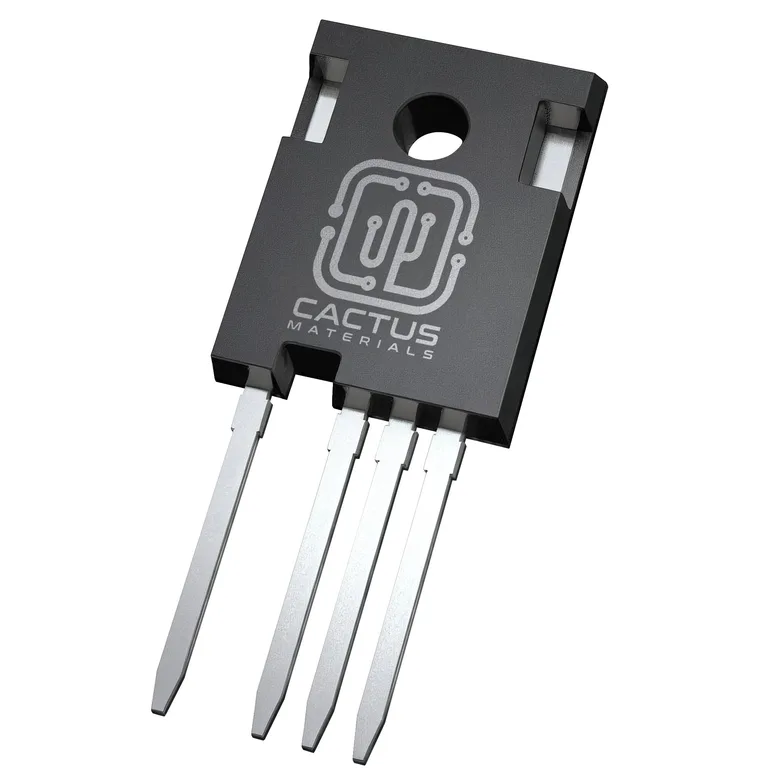

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Cactus Materials Inc. CM-080-SCM-330C-70A-P4L
Manufacturer
Manufacturer Product Number
CM-080-SCM-330C-70A-P4L
Description
SiC Power MOSFETs
Manufacturer Standard Lead Time 5 Days
Detailed Description
SiC Power MOSFETs
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Cactus Materials Inc.
Gate Charge (Qg) (Max) @ Vgs
220 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds
2750 pF @ 200 V
Operating Temperature
-65°C ~ 195°C (TA)
Power Dissipation (Max)
210W (Ta)
Qualification
-
Technology
SiCFET (Silicon Carbide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
40A
Rds On (Max) @ Id, Vgs
75mOhm @ 40A, 20V
Vgs(th) (Max) @ Id
2.98V @ 20mA
Mounting Type
Through Hole
FET Feature
-
Supplier Device Package
TO-247-4L
Package / Case
TO-247-4L
Grade
-
Drive Voltage (Max Rds On, Min Rds On)
15V, 20V
Vgs (Max)
+20V, -5V
Drain to Source Voltage (Vdss)
3300 V
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
CM-080-SCM-330C-70A-P4L
28219551
6293-CM-080-SCM-330C-70A-P4L-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 970
Packaging Quantity Unit Price Ext Price
1 1.429.000 ₫ 1.429.000 ₫
1.429.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
10
1.429.000 ₫
14.290.000 ₫
30
1.377.000 ₫
41.310.000 ₫
100
1.299.000 ₫
129.900.000 ₫
MOQ 10 · Order multiple 10
