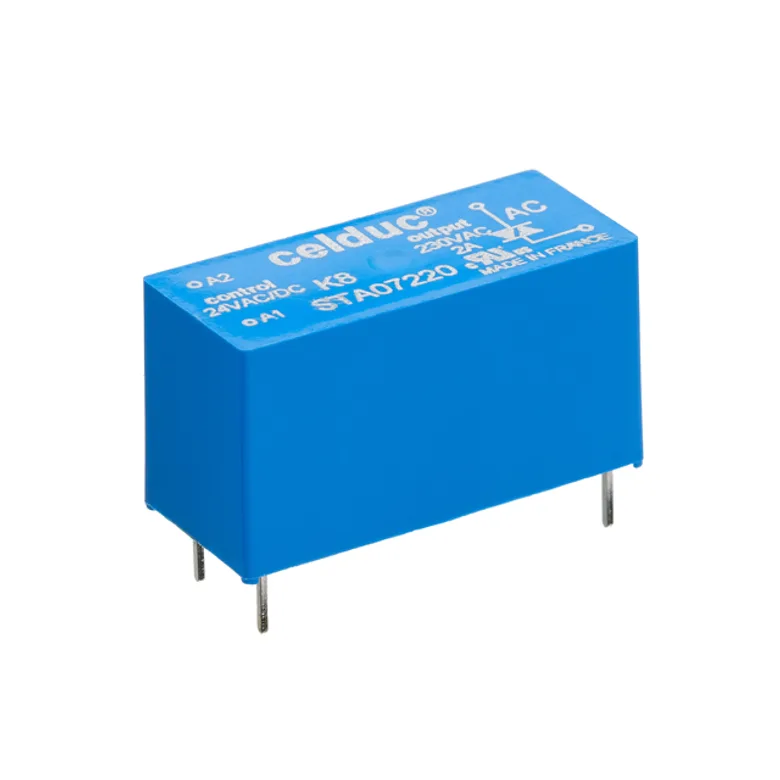

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Celduc Inc. STD03505
Manufacturer
Manufacturer Product Number
STD03505
Description
SSR RELAY SPST-NO 5A 0-30V
Manufacturer Standard Lead Time Contact us
Detailed Description
Solid State Photo-Coupled Relay (Photorelay) SPST-NO (1 Form A) 4-SIP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Celduc Inc.
Operating Temperature
-40°C ~ 100°C
Termination Style
PC Pin
Qualification
-
Output Type
DC
Load Current
5 A
Approval Agency
cURus
Relay Type
Photo-Coupled Relay (Photorelay)
Mounting Type
Through Hole
Voltage - Input
24VDC
Supplier Device Package
4-SIP
Circuit
SPST-NO (1 Form A)
Package / Case
4-SIP
Grade
-
Voltage - Load
0 V ~ 30 V
On-State Resistance (Max)
150 mOhms
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
STD03505
14310721
3667-STD03505-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 1.021.000 ₫ 1.021.000 ₫
1.021.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
15
1.021.000 ₫
15.315.000 ₫
MOQ 15 · Order multiple 15
