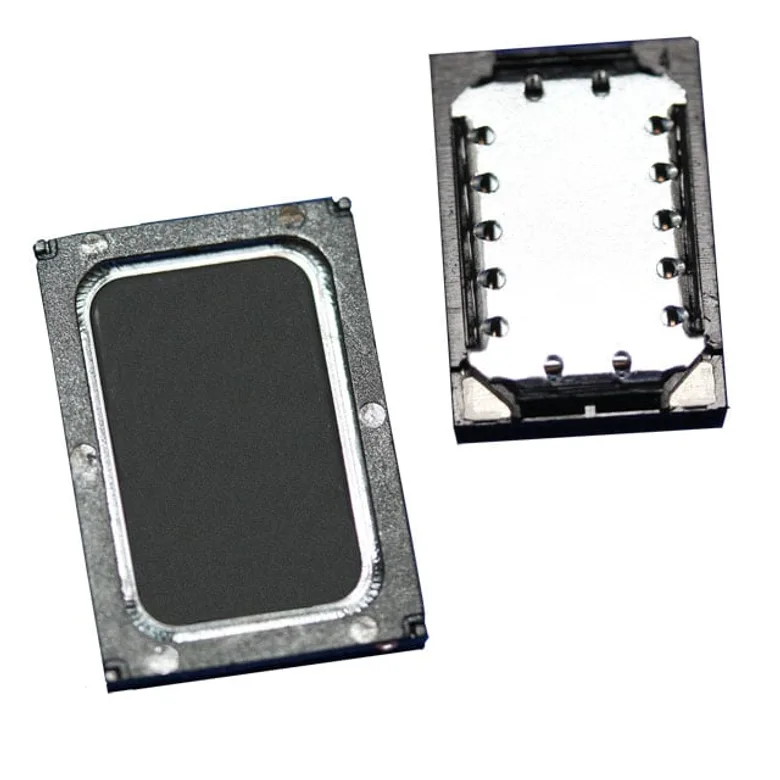

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Challenge Electronics CS17-01P100-03-1X
Manufacturer
Manufacturer Product Number
CS17-01P100-03-1X
Description
SPEAKER 8OHM 1W TOP PORT 99DB
Manufacturer Standard Lead Time Contact us
Detailed Description
SPEAKER 8OHM 1W TOP PORT 99DB
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Challenge Electronics
Efficiency - dBA
99.00
Efficiency - Testing
1W/100mm
Efficiency - Type
Sound Pressure Level (SPL)
Size / Dimension
0.669" L x 0.472" W (17.00mm x 12.00mm)
Technology
Magnetic
Material - Cone
Polyetheretherketone (PEEK)
Material - Magnet
Nd-Fe-B
Termination
Solder Pads
Ingress Protection
IP67 - Dust Tight, Waterproof
Frequency - Self Resonant
1kHz
Ratings
-
Port Location
Top
Shape
Rectangular
Height - Seated (Max)
0.130" (3.30mm)
Type
General Purpose
Impedance
8 Ohms
Power - Max
1.2 W
Power - Rated
1 W
Frequency Range
800 Hz ~ 10 kHz
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
CS17-01P100-03-1X
13557623
2603-CS17-01P100-03-1X-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 7,368
Packaging Quantity Unit Price Ext Price
1 60.000Â â‚« 60.000Â â‚«
60.000Â â‚«
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
60.000Â â‚«
60.000Â â‚«
10
46.000Â â‚«
460.000Â â‚«
25
41.000Â â‚«
1.025.000Â â‚«
50
38.000Â â‚«
1.900.000Â â‚«
100
35.000Â â‚«
3.500.000Â â‚«
300
32.000Â â‚«
9.600.000Â â‚«
500
30.000Â â‚«
15.000.000Â â‚«
1,000
28.000Â â‚«
28.000.000Â â‚«
5,000
25.000Â â‚«
125.000.000Â â‚«
MOQ 1 · Order multiple 1
