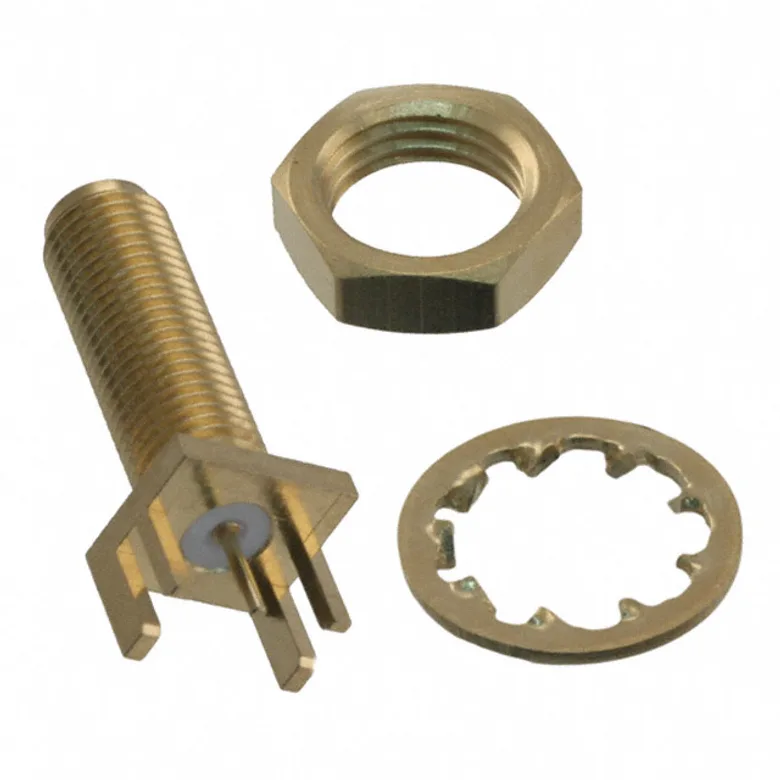

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Cinch Connectivity Solutions Johnson 142-0721-801
Manufacturer
Manufacturer Product Number
142-0721-801
Description
JACK ASSEMBLY,END LAUNCH SMA
Manufacturer Standard Lead Time Contact us
Detailed Description
SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Solder
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Cinch Connectivity Solutions Johnson
Voltage Rating
335 V
Operating Temperature
-65°C ~ 165°C
Connector Type
Jack, Female Socket
Contact Termination
Solder
Insertion Loss
-
Features
-
Fastening Type
Threaded
Impedance
50 Ohms
Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Mounting Type
Board Edge, End Launch; Panel Mount
Ingress Protection
-
Connector Style
SMA
Dielectric Material
Polytetrafluoroethylene (PTFE)
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Cable Group
-
Shield Termination
Solder
Center Contact Material
Beryllium Copper
Body Finish
Gold
Center Contact Plating
Gold
Mounting Feature
Bulkhead - Front Side Nut
Frequency - Max
18 GHz
Number of Ports
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Additional Resources
Attribute
Description
Part Number Alias
142-0721-801
9992833
J10590-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 504.000 ₫ 504.000 ₫
504.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
504.000 ₫
504.000 ₫
10
428.000 ₫
4.280.000 ₫
25
401.000 ₫
10.025.000 ₫
50
382.000 ₫
19.100.000 ₫
100
364.000 ₫
36.400.000 ₫
250
341.000 ₫
85.250.000 ₫
500
325.000 ₫
162.500.000 ₫
MOQ 1 · Order multiple 1
