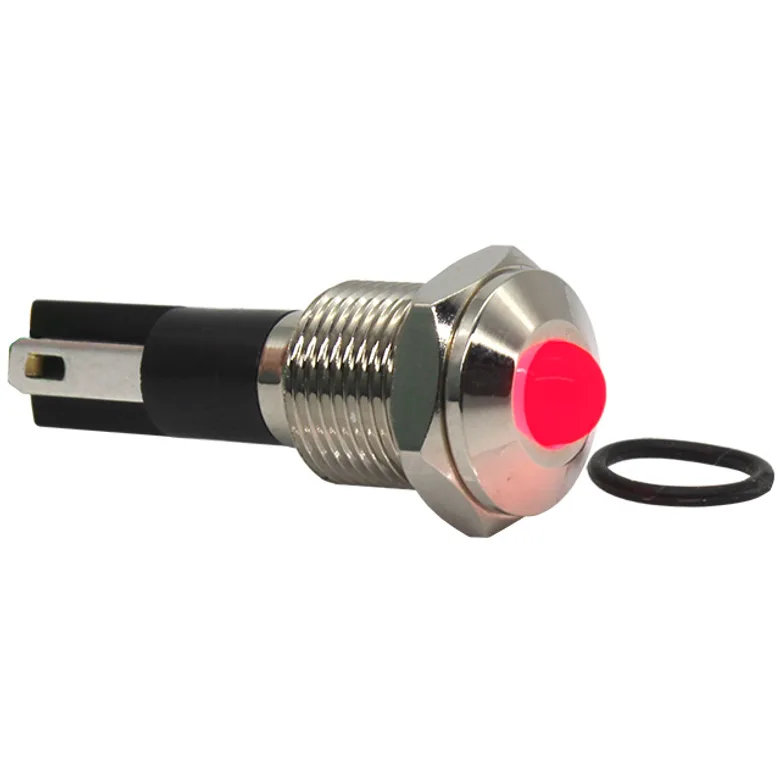

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
CIT Relay and Switch IN10BSRG12C
Manufacturer
Manufacturer Product Number
IN10BSRG12C
Description
LED PNL IND RED/GREEN 10MM .100"
Manufacturer Standard Lead Time Contact us
Detailed Description
LED PNL IND RED/GREEN 10MM .100"
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
CIT Relay and Switch
Termination Style
Quick Connect - 0.110" (2.8mm)
Current
20mA Green, 20mA Red
Features
-
Lens Color
Green, Red
Viewing Angle
145°
Voltage
12V Green, 12V Red
Ingress Protection
IP67
Ratings
DC
Panel Cutout Dimensions
0.394" (10.00mm)
Wavelength - Peak
516nm Green, 635nm Red
Type
LED
Lens Transparency
Diffused
Lamp Color
Green, Red
Panel Cutout Shape
Round
Lens Style
Round with Domed Top
Lens Size
5.00mm Dia
Millicandela Rating
170mcd Green, 120mcd Red
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
IN10BSRG12C
29270686
2449-IN10BSRG12C-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 235.000 ₫ 235.000 ₫
235.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
10
235.000 ₫
2.350.000 ₫
MOQ 10 · Order multiple 10
Substitutes
IN10BNRG12C
LED PNL IND RED/GREEN 10MM .100"
262.000 ₫ CIT Relay and Switch
