Image shown is representative only. Exact specifications should be obtained from the product datasheet.

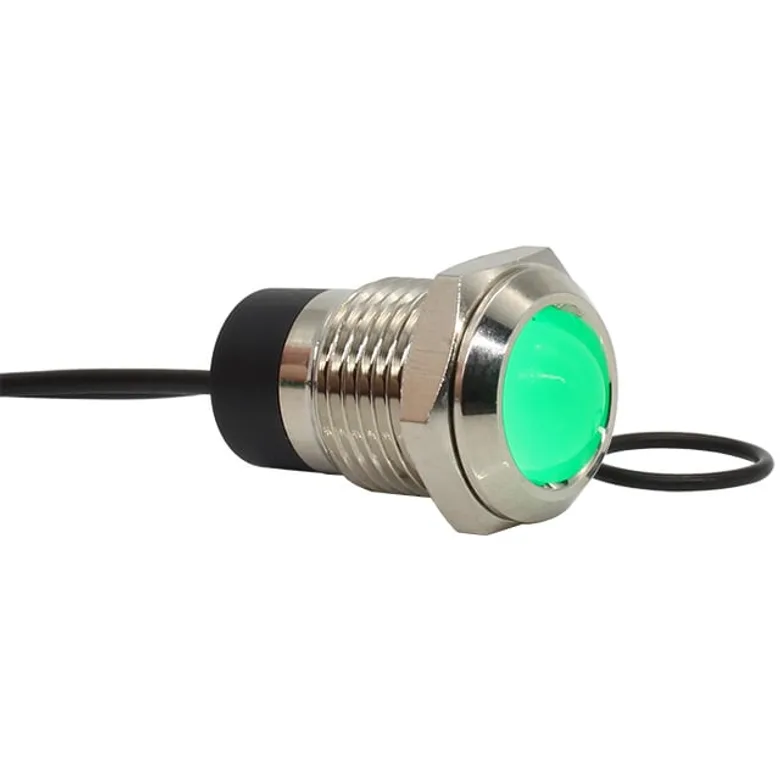

CIT Relay and Switch IN12BSGNW
Manufacturer
Manufacturer Product Number
IN12BSGNW
Description
LED PNL IND GREEN 12MM 150MM WIR
Manufacturer Standard Lead Time Contact us
Detailed Description
LED PNL IND GREEN 12MM 150MM WIR
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
CIT Relay and Switch
Termination Style
Wire Leads - 5.9" (150.00mm)
Current
20mA
Features
-
Lens Color
Green
Viewing Angle
145°
Voltage
3.3V
Ingress Protection
IP67
Ratings
Vf (Typ), If (Max)
Panel Cutout Dimensions
0.47" (12.00mm)
Wavelength - Peak
516nm
Type
LED
Lens Transparency
Diffused
Lamp Color
Green
Panel Cutout Shape
Round
Lens Style
Round with Domed Top
Lens Size
8.00mm Dia
Millicandela Rating
170mcd
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
IN12BSGNW
29273253
2449-IN12BSGNW-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 201.000 ₫ 201.000 ₫
201.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
10
201.000 ₫
2.010.000 ₫
MOQ 10 · Order multiple 10
Substitutes
IN12BSMGNW
LED PNL IND GREEN 12MM 150MM WIR
263.000 ₫ CIT Relay and Switch
