Image shown is representative only. Exact specifications should be obtained from the product datasheet.

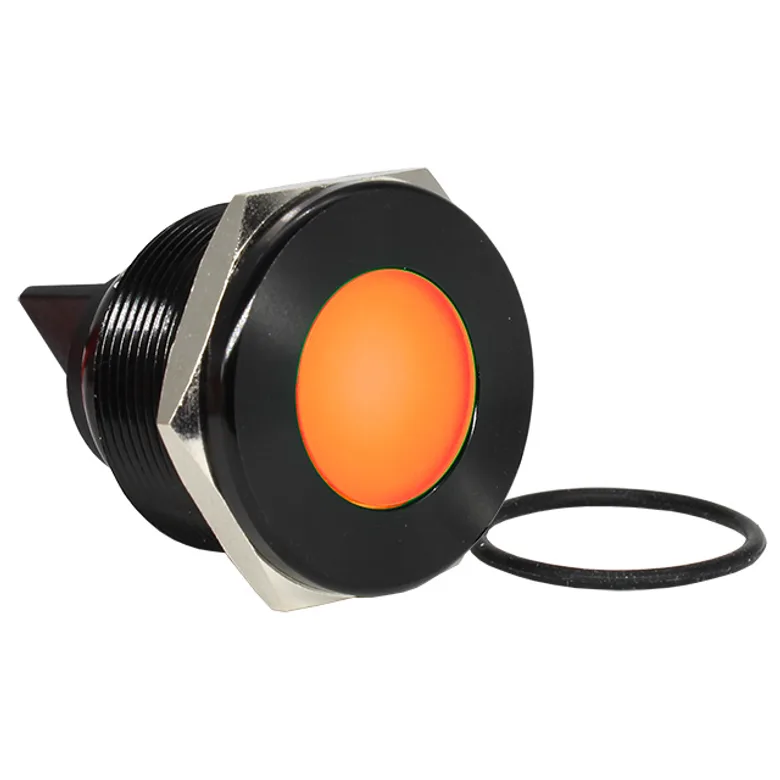

CIT Relay and Switch IN25ABO110Z
Manufacturer
Manufacturer Product Number
IN25ABO110Z
Description
LED PNL IND ORANGE 25MM SCREW TE
Manufacturer Standard Lead Time Contact us
Detailed Description
LED Panel Indicator Orange Diffused 145° 110V 20mA Screw Terminal
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
CIT Relay and Switch
Termination Style
Screw Terminal
Current
20mA
Features
-
Lens Color
Orange
Viewing Angle
145°
Voltage
110V
Ingress Protection
IP67
Ratings
DC
Panel Cutout Dimensions
0.99" (25.10mm)
Wavelength - Peak
606nm
Type
LED
Lens Transparency
Diffused
Lamp Color
Orange
Panel Cutout Shape
Round
Lens Style
Round with Flat Top
Lens Size
16.00mm Dia
Millicandela Rating
120mcd
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
IN25ABO110Z
29019883
2449-IN25ABO110Z-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 751.000 ₫ 751.000 ₫
751.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
5
751.000 ₫
3.755.000 ₫
10
711.000 ₫
7.110.000 ₫
100
616.000 ₫
61.600.000 ₫
MOQ 5 · Order multiple 5
Substitutes
IN25ASO110Z
LED PNL IND ORANGE 25MM SCREW TE
558.000 ₫ CIT Relay and Switch
