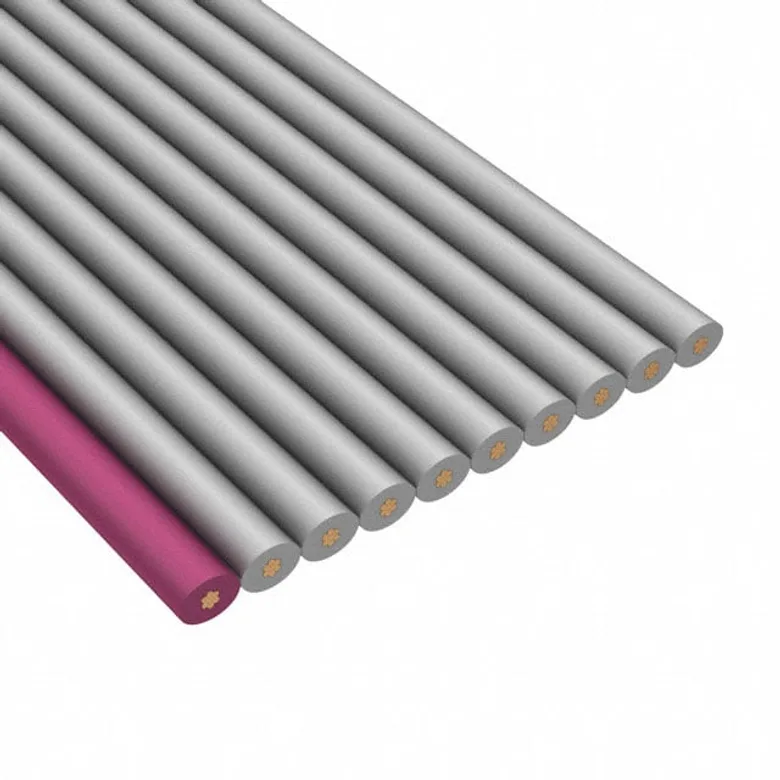

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
CNC Tech 302-28-10-GR-0250F
Manufacturer
Manufacturer Product Number
302-28-10-GR-0250F
Description
CBL RIBN 10COND 0.05 GRAY 1'
Manufacturer Standard Lead Time Contact us
Detailed Description
CBL RIBN 10COND 0.05 GRAY 1'
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
CNC Tech
Product Status
Obsolete
Voltage
300 V
Operating Temperature
105°C
Qualification
-
Number of Conductors
10
Cable Type
Flat Cable
Features
-
Insulation Resistance
100MOhms
Ratings
UL Style 2651
Length
1.00' (304.80mm)
Wire Gauge
28 AWG
Shielding
Unshielded
Jacket (Insulation) Material
Poly-Vinyl Chloride (PVC)
Conductor Strand
7 Strands / 36 AWG
Pitch
0.050" (1.27mm)
Conductor Material
Copper, Tinned
Ribbon Thickness
0.035" (0.89mm)
Ribbon Width
0.500" (12.70mm)
First Conductor Mark
Red
Grade
-
Jacket Color
Gray
