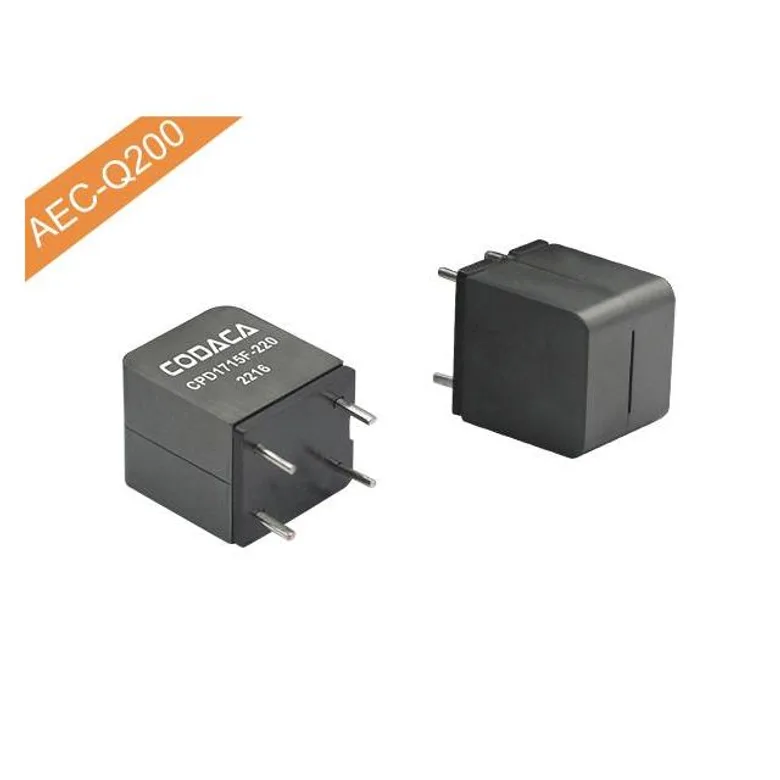

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
CODACA CPD1715F-220M
Manufacturer
Manufacturer Product Number
CPD1715F-220M
Description
FIXED IND 22UH 17A 8.8 MOHM TH
Manufacturer Standard Lead Time Contact us
Detailed Description
FIXED IND 22UH 17A 8.8 MOHM TH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
CODACA
Operating Temperature
-40°C ~ 125°C
Tolerance
±20%
DC Resistance (DCR)
8.8mOhm Max
Size / Dimension
0.689" L x 0.591" W (17.50mm x 15.00mm)
Features
Low Loss, Soft Saturation
Current - Saturation (Isat)
14.2A
Material - Core
Ferrite
Inductance Frequency - Test
1 kHz
Mounting Type
Through Hole
Q @ Freq
-
Frequency - Self Resonant
-
Ratings
AEC-Q200
Shielding
Shielded
Supplier Device Package
-
Height - Seated (Max)
0.760" (19.30mm)
Package / Case
Vertical, 4 PC Pin
Type
Wirewound
Inductance
22 µH
Current Rating (Amps)
17 A
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
CPD1715F-220M
16023991
4044-CPD1715F-220M-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 36
Packaging Quantity Unit Price Ext Price
1 110.000 ₫ 110.000 ₫
110.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
110.000 ₫
110.000 ₫
30
83.000 ₫
2.490.000 ₫
120
74.000 ₫
8.880.000 ₫
1,020
61.000 ₫
62.220.000 ₫
MOQ 1 · Order multiple 1
